Wilden T4 AODD Air Operated Double Diaphragm Pump 1.5" Polypropylene 04-10132
Wilden T4 AODD Air Operated Double Diaphragm Pump 1.5" Polypropylene 04-10132
Regular price
£665.00 GBP
Regular price
Sale price
£665.00 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Manufacturer: Wilden
Pump Model: T4
Description Code: T4/PPPPRBT/TNUT/PTV (as shown on identification tag)
Item Number: 04-10132
Serial Number: 0020714542
Date: 08/11/06
MIO Number: M143050
Pump Type: Air-Operated Double-Diaphragm (AODD)
Port Size: 1½"
Construction: Polypropylene
Air Distribution: Turbo-Flo™
Diaphragm: PTFE with Neoprene backup
Valve Balls: PTFE
Approx. capacity: up to 234 L/min (61 GPM)

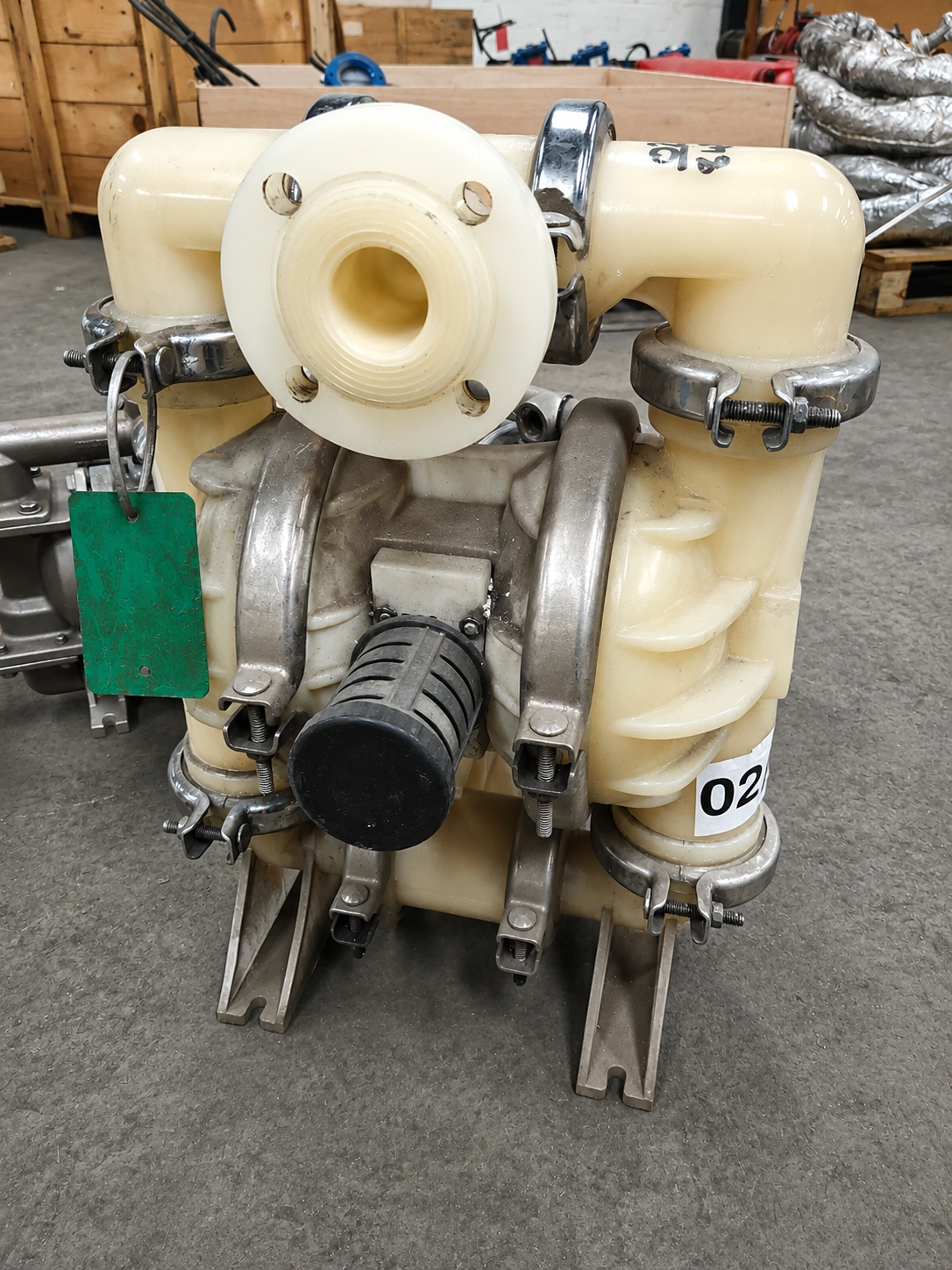

The Wilden T4 is an industrial air-operated double-diaphragm pump suitable for transferring and handling a wide range of liquids. The pump uses compressed air rather than an electric motor and is designed for self-priming and demanding industrial applications.

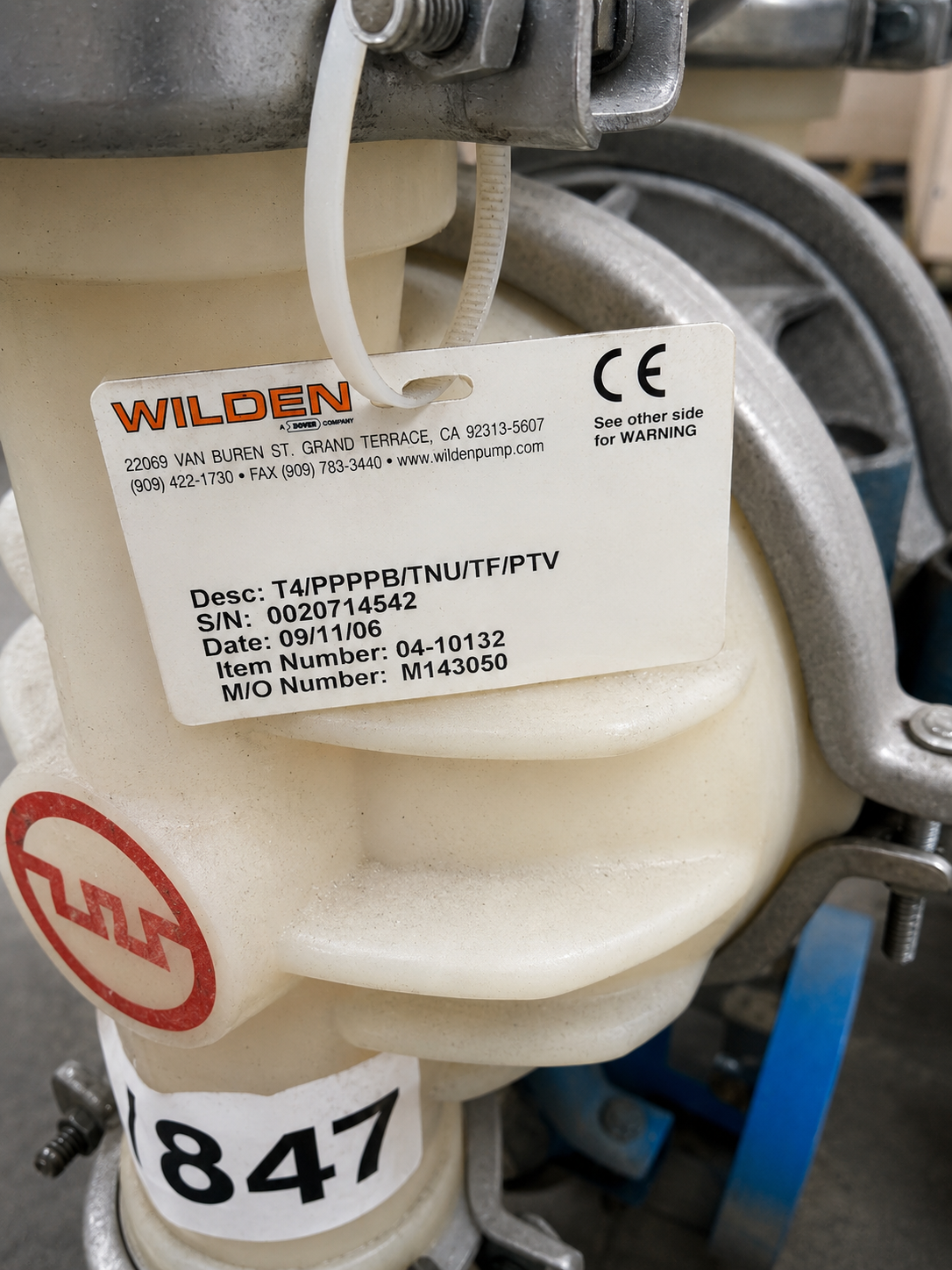

The manufacturer's identification tag confirms Item Number 04-10132 and the T4 configuration. Independent Wilden pump records identify 04-10132 as a 1½" T4 Turbo-Flo pump with polypropylene construction, PTFE/Neoprene diaphragms and PTFE valve balls, with a listed maximum capacity of approximately 61 GPM / 234 L/min.
Condition
Used industrial condition.
The pump shows visible signs of previous use and storage
Contact
We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!
MSTAK Contact Number: 07915071899
Brand: Wilden
Body Material: Polypropylene
Diaphragm Pump Type: Double Diaphragm Pump
