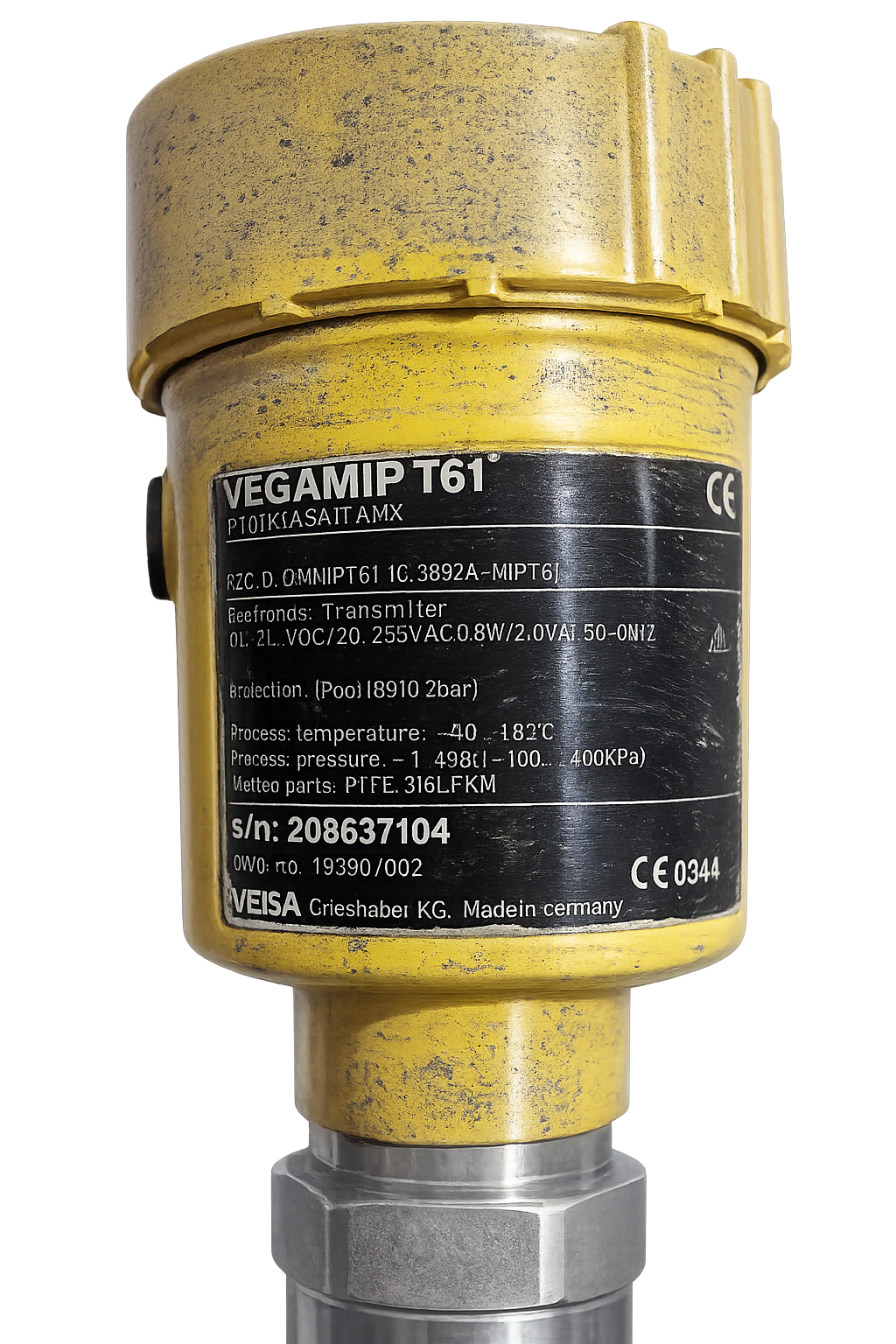

VEGAMIP T61 Microwave Transmitter MPT61XXAGA1TAMX 316l Stainless Steel

The VEGA VEGAMIP T61 is an industrial microwave transmitter designed for non-contact point level detection of bulk solids and liquids. Used together with a VEGAMIP R61 or R62 receiver, it forms a microwave barrier system that reliably detects the presence or absence of material, even in harsh industrial environments.

Key Features

• Microwave transmitter for use with VEGAMIP R61/R62 receivers
• Non-contact level detection for solids and liquids
• Reliable operation in dusty, abrasive, and challenging process conditions
• Suitable for silos, hoppers, crushers, pipelines, vessels, and conveyor systems
• Wear-free measuring principle with no contact to the product
• Can detect materials through non-metallic vessel walls
• Suitable for object detection applications including vehicles and conveyor belt monitoring
• Designed for hazardous area installations with ATEX and IEC approvals available

Specifications

• Measuring Distance: Up to 100 m
• Process Temperature: -40°C to +80°C (up to +450°C with optional mounting adapter)
• Process Pressure: -1 to +4 bar
• Wetted Materials: PTFE, 316L Stainless Steel, PP
• Process Connections: G1½, 1½" NPT, and flange options
• Housing Options: Plastic, Aluminium, or Stainless Steel
• Protection Rating: IP66/IP67 or IP66/IP68
• Ambient Temperature: -40°C to +80°C
• Explosion Protection: Flameproof "d" and Dust Ignition Protection "t" versions available

Typical Applications

• High-level and low-level detection in silos and storage vessels
• Crusher and bunker level monitoring
• Conveyor belt blockage and backup detection
• Liquid level switching in tanks and pipelines
• Mining, aggregates, cement, chemical, food, and processing industries
