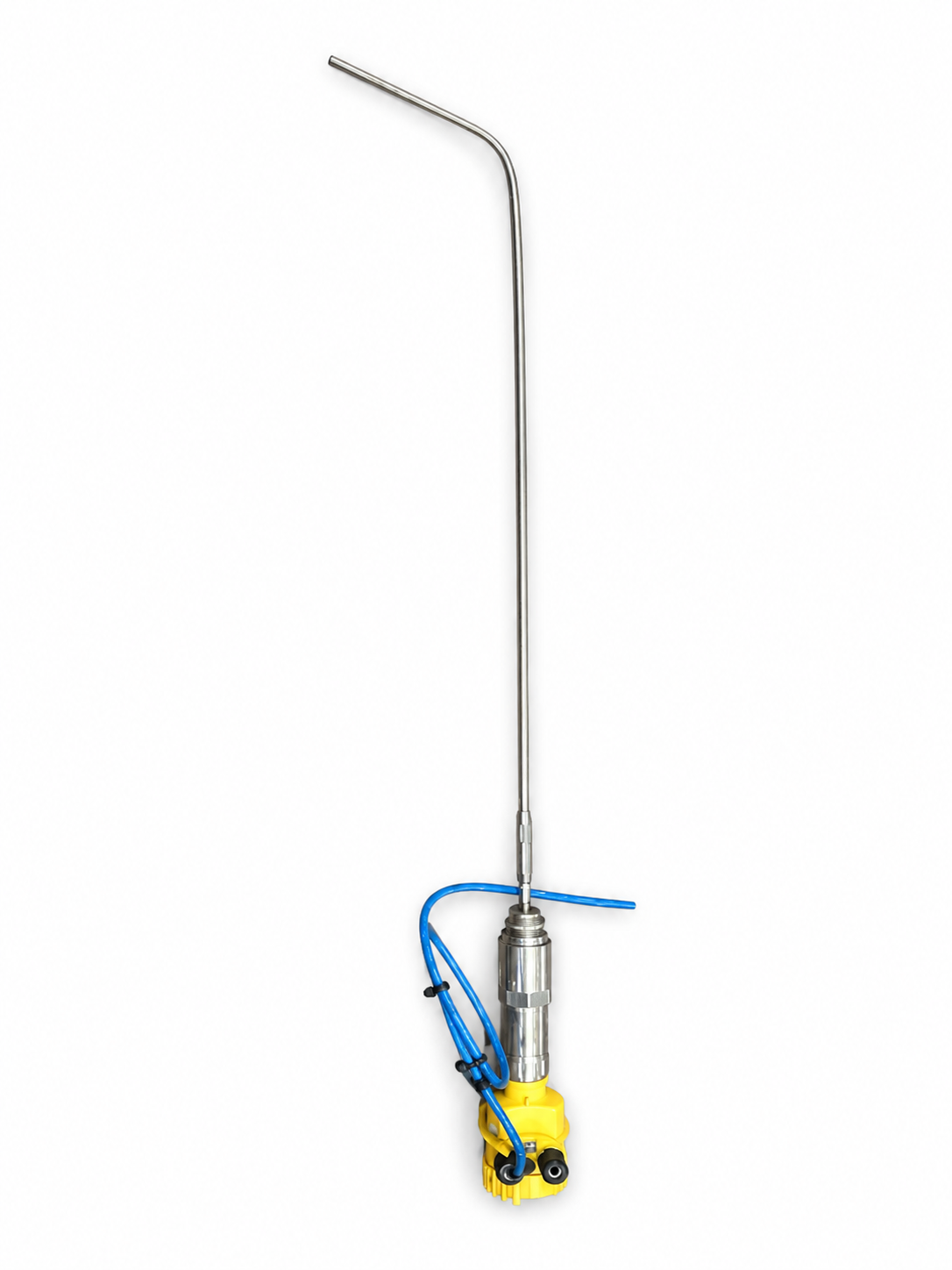

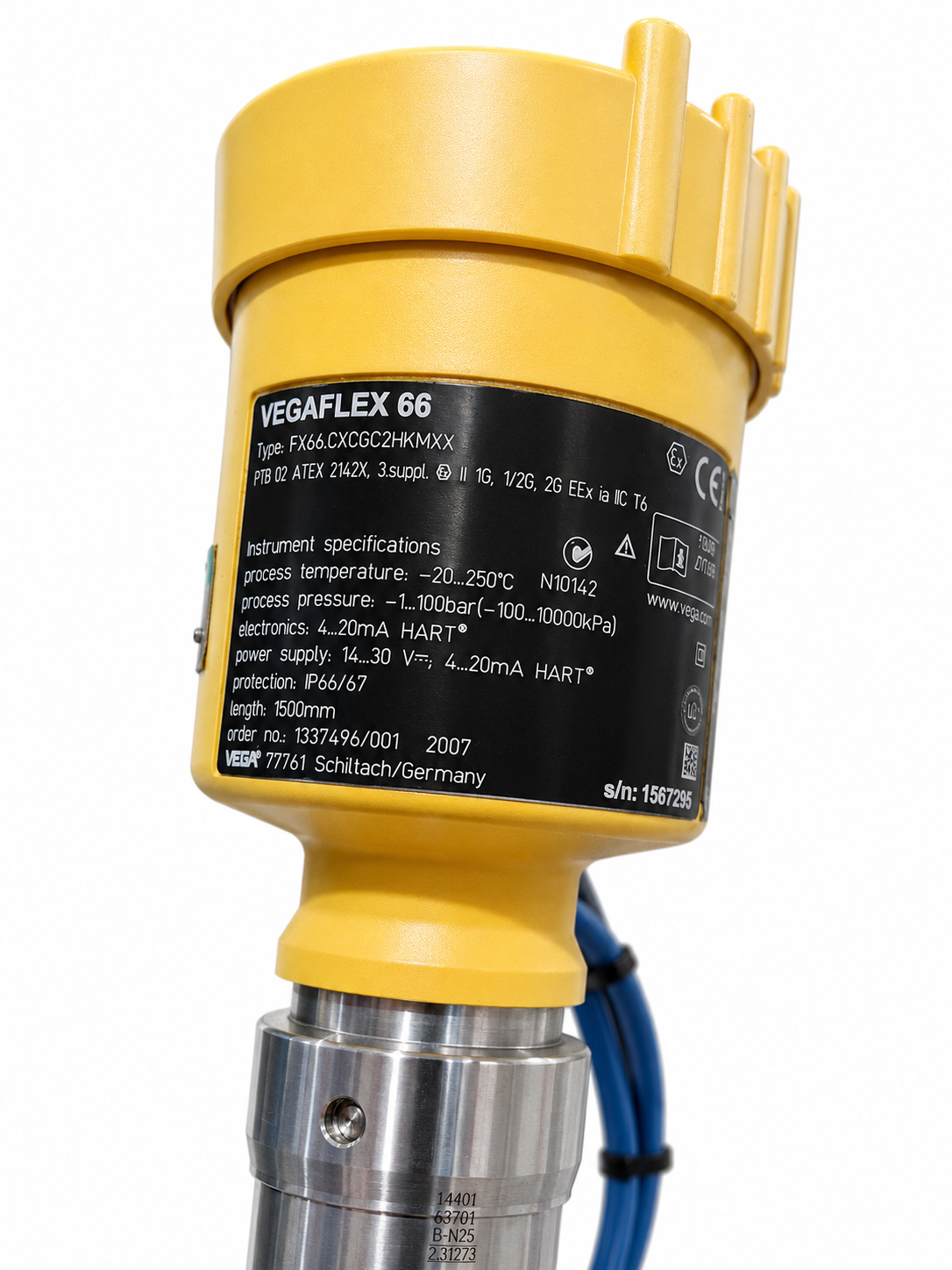

Vega VEGAFLEX 66 FX66.CXCGC2HKMXX Guided Wave Radar Level Sensor

The VEGA VEGAFLEX 66 is a premium guided wave radar (GWR) level transmitter designed for continuous level measurement of liquids and bulk solids in the most demanding industrial environments. Utilizing Time Domain Reflectometry (TDR) technology, the VEGAFLEX 66 delivers highly accurate level measurement even in applications involving extreme pressures, temperatures, steam, dust, buildup, condensation, and difficult process conditions. It is particularly suited for chemical, petrochemical, power generation, and refinery applications.

Key Features

• Guided wave radar (TDR) level measurement technology
• Continuous level measurement of liquids and bulk solids
• Reliable operation in high-pressure and high-temperature processes
• Measurement unaffected by dust, steam, condensation, or buildup
• Suitable for tanks, vessels, reactors, silos, bypass chambers, and process columns
• High measurement accuracy
• Maintenance-free operation
• Available with hazardous area approvals
• Ideal for critical process control applications
• Robust industrial construction for harsh environments

Specifications

• Manufacturer: VEGA
• Model: VEGAFLEX 66
• Type: Guided Wave Radar Level Transmitter
• Measuring Principle: Time Domain Reflectometry (TDR)
• Measurement Type: Continuous Level Measurement
• Media:
  • Liquids
  • Bulk Solids
• Measuring Range: Up to 60 m
• Accuracy: ±3 mm
• Process Pressure: Up to 400 bar
• Process Temperature: -196°C to +400°C
• Ambient Temperature: -40°C to +70°C
• Probe Options:
  • Cable
  • Rod
  • Coaxial (model dependent)
• Hazardous Area Approvals:
  • ATEX
  • IECEx (configuration dependent)
• Output Signal:
  • 4–20 mA / HART (configuration dependent)
• Enclosure Protection:
  • Industrial IP-rated housing

Function

The VEGAFLEX 66 transmits microwave pulses along a guided probe and measures the time taken for reflections to return from the product surface. This allows highly accurate and reliable level measurement regardless of changing product properties or difficult process conditions. Unlike conventional technologies, performance is largely unaffected by foam, vapors, pressure fluctuations, condensation, or dust.

Typical Applications

• Chemical reactors
• Petrochemical processing
• Power generation plants
• High-pressure storage vessels
• Steam boilers
• Oil and gas facilities
• Bulk solids silos
• Process tanks and columns
• Hazardous area installations
