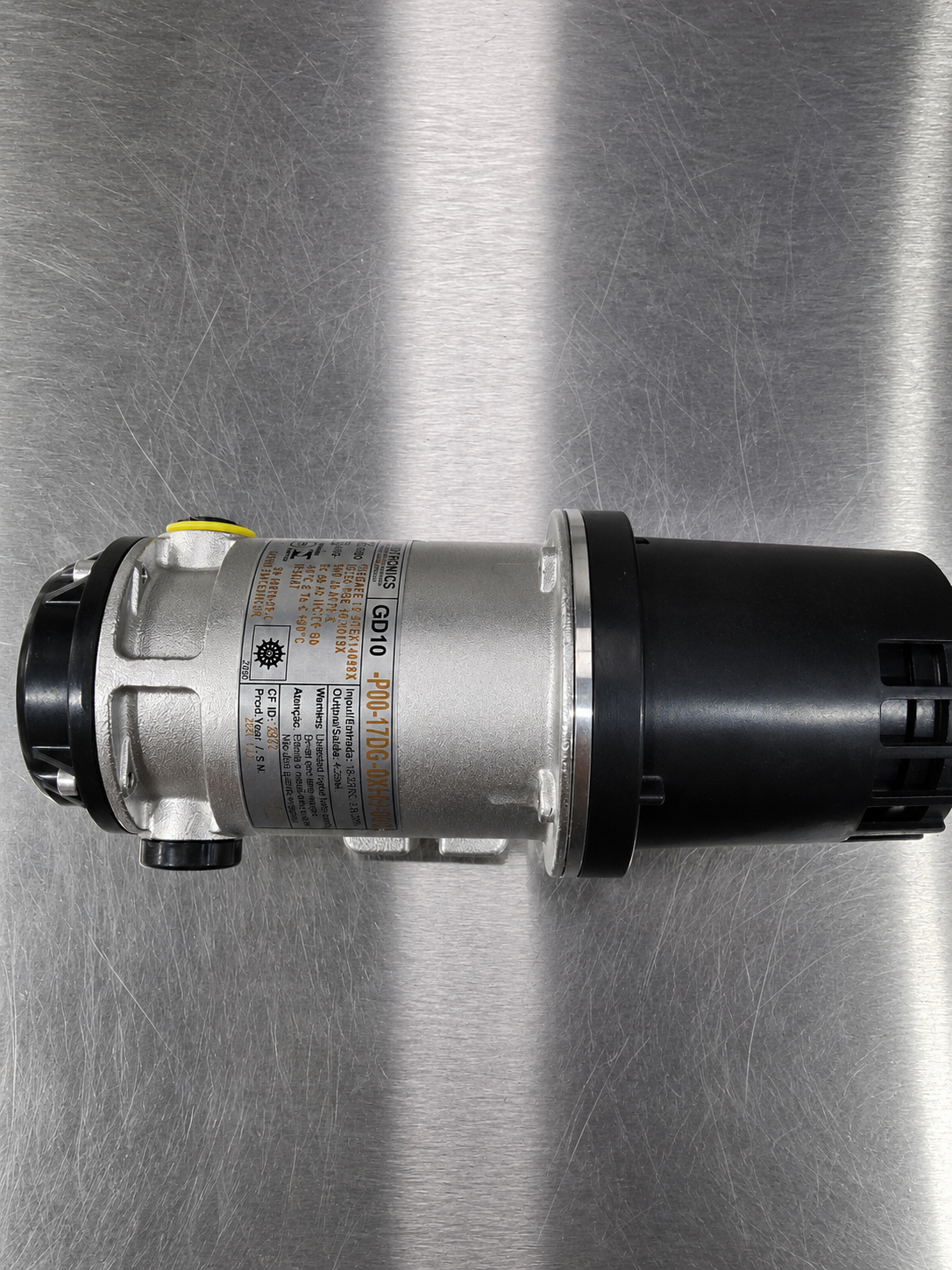

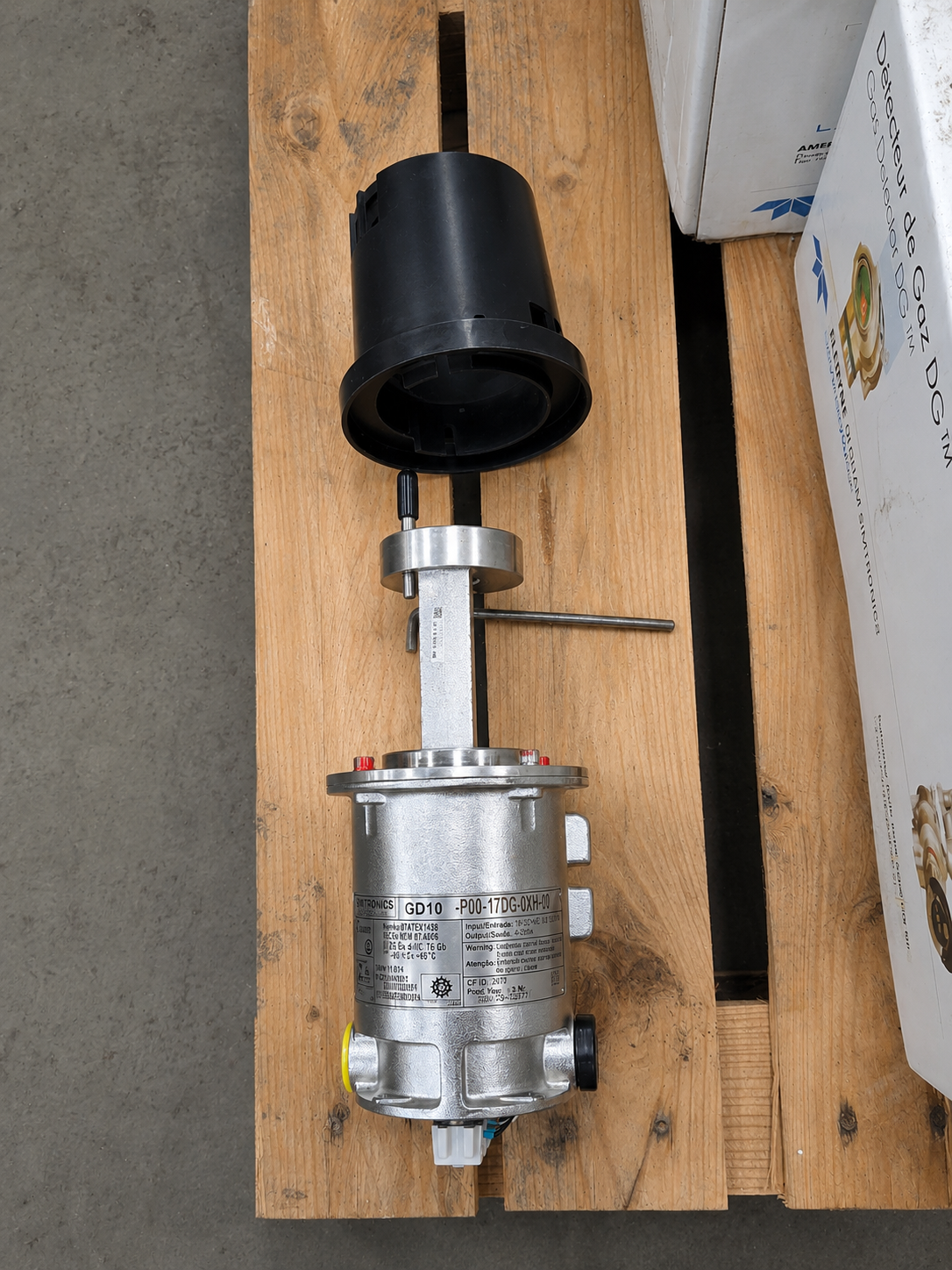

Simtronics Gas Detector GD10P P0017DG0XH00

The Simtronics GD10P is a fixed-point infrared gas detector designed for continuous monitoring of combustible hydrocarbon gases in hazardous industrial environments. Using advanced dual-wavelength infrared sensing technology, the GD10P provides highly reliable gas detection without poisoning, sensor drift, or routine recalibration requirements. The detector is specifically designed for demanding oil & gas, petrochemical, offshore, and industrial process safety applications where fast and dependable gas leak detection is critical.

Key Features

• Fixed infrared hydrocarbon gas detector
• Continuous combustible gas monitoring
• Dual-wavelength infrared sensing technology
• Immune to catalytic sensor poisoning
• No routine field recalibration required
• Continuous automatic self-testing
• Fast response to gas leaks
• Suitable for harsh industrial environments
• Low maintenance design
• Hazardous area approved

Specifications

• Manufacturer: Simtronics
• Model: GD10P

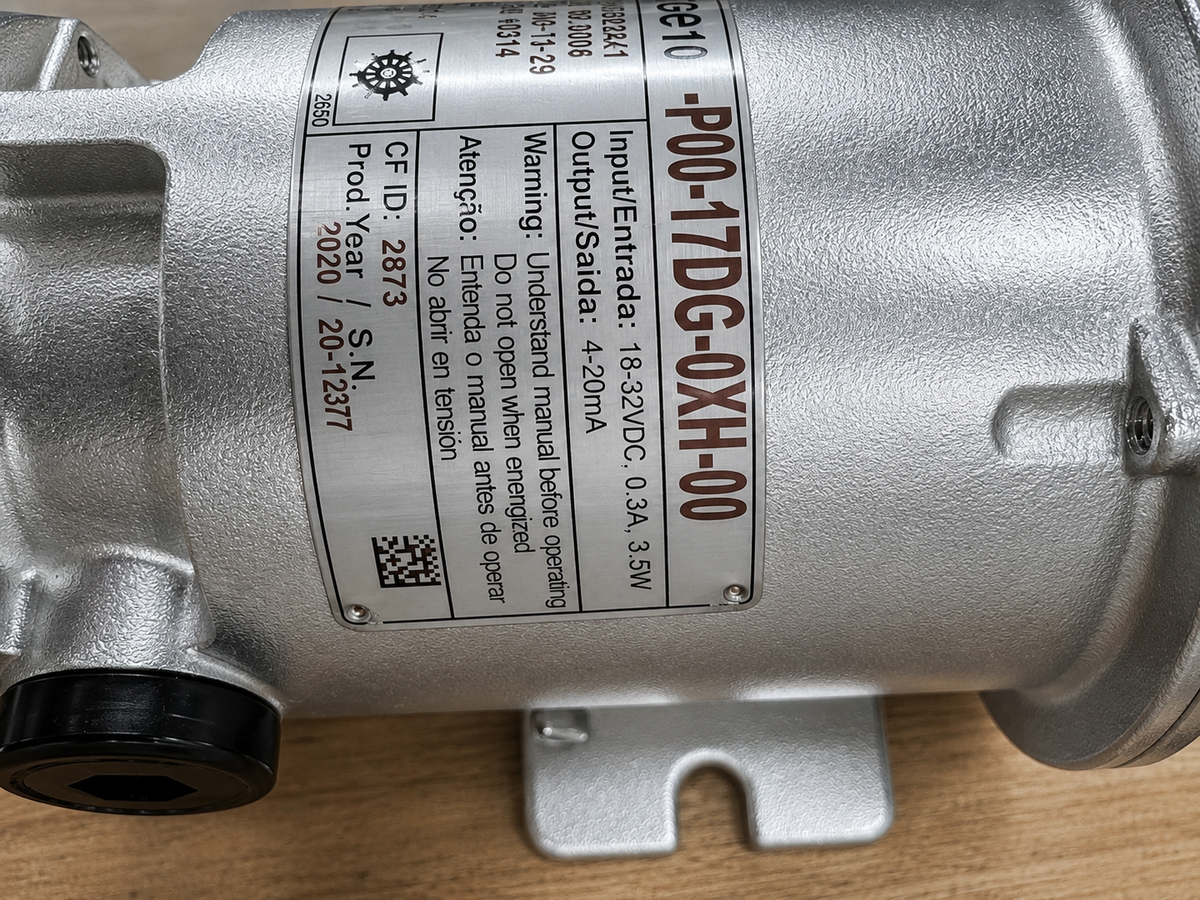

• Part Number: GD10-P00-17DG-0XH-00
• Detection Principle: Infrared (IR)
• Gas Type:
  • Methane (CH₄) configuration
  • Hydrocarbon gas monitoring
• Measuring Range:
  • 0–100% LEL
• Output Signal:
  • 4–20 mA
  • HART communication
• Supply Voltage:
  • 18–32 VDC
• Response Time:
  • Typically less than 3 seconds
• Self Diagnostics:
  • Continuous automatic optical monitoring
• Housing Material:
  • Marine-grade aluminium or stainless steel (version dependent)
• Protection Rating:
  • IP66 / IP67
• Operating Temperature:
  • -55°C to +75°C

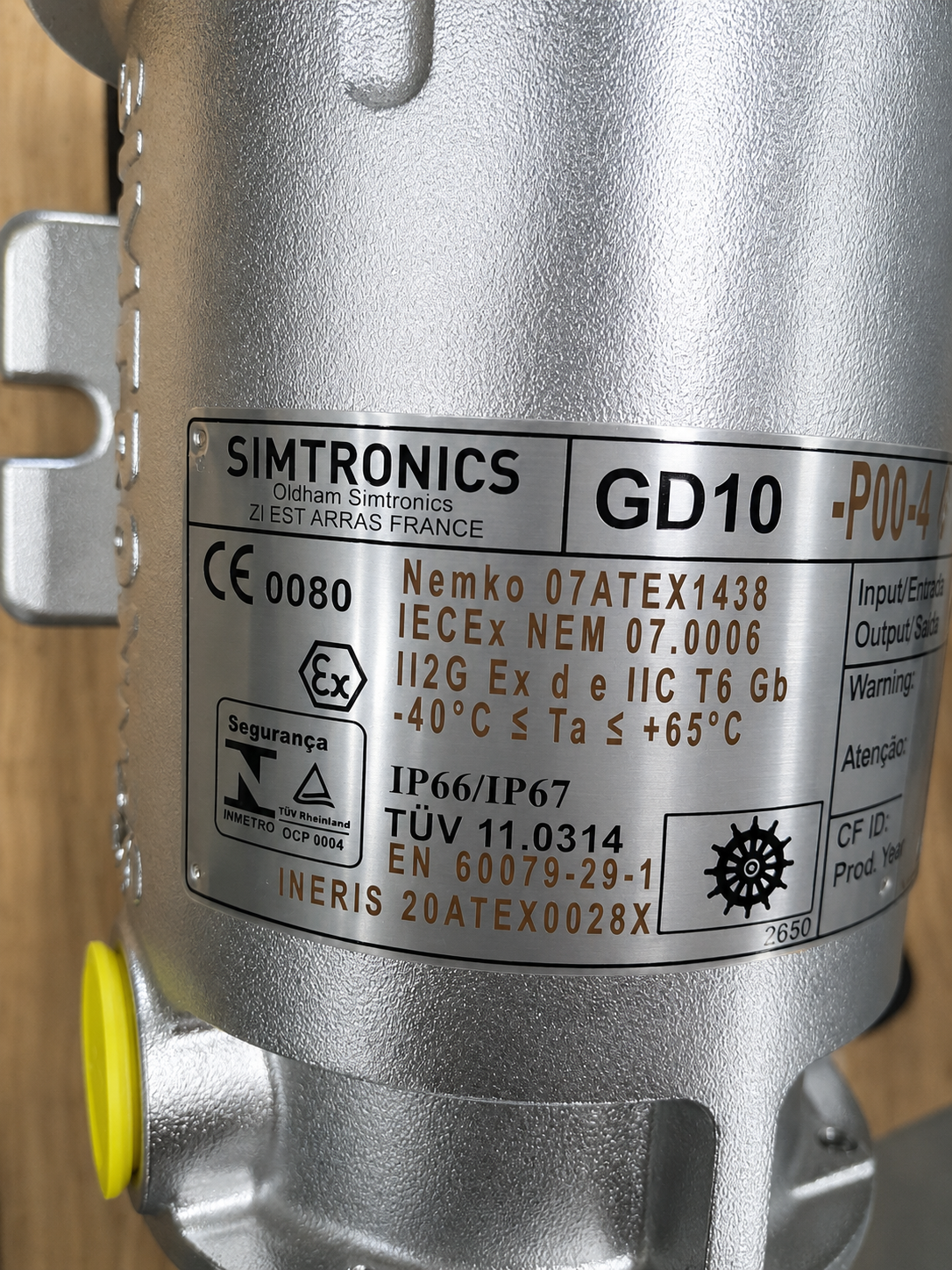

• Certifications:
  • ATEX
  • IECEx
  • FM
  • SIL 2 capable

Function

The GD10P continuously monitors the atmosphere for combustible hydrocarbon gases using infrared absorption technology. When gas enters the optical path, the detector measures the reduction in infrared energy caused by the gas molecules and converts this into a gas concentration reading. Unlike catalytic bead detectors, the GD10P is resistant to poisoning and contamination, providing long-term stable operation with minimal maintenance requirements.

Typical Applications

• Offshore oil & gas platforms
• Refineries
• Petrochemical plants
• Compressor stations
• LNG facilities
• Turbine enclosures
• Gas processing plants
• Chemical manufacturing facilities
• Hazardous area gas detection systems
