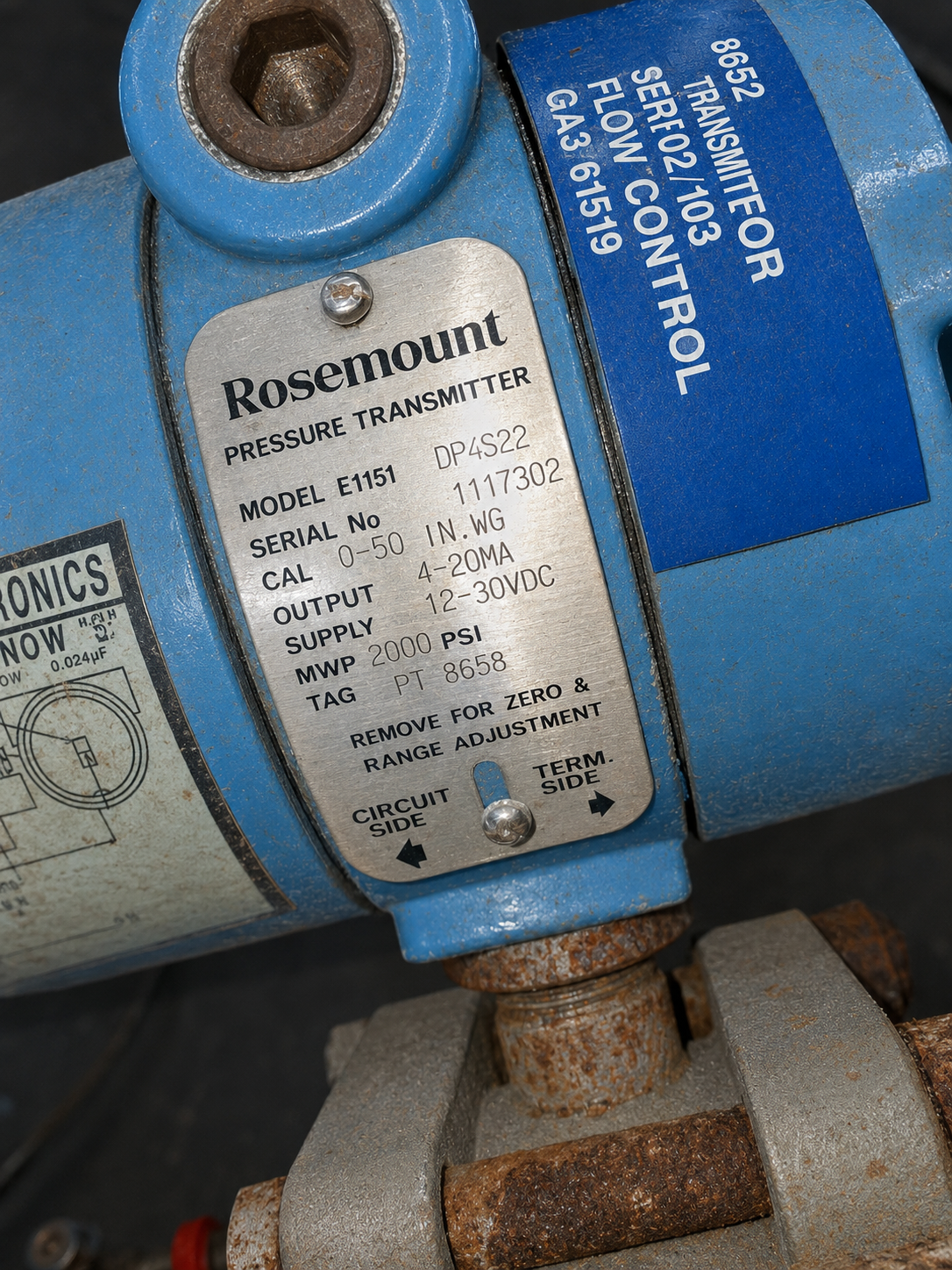

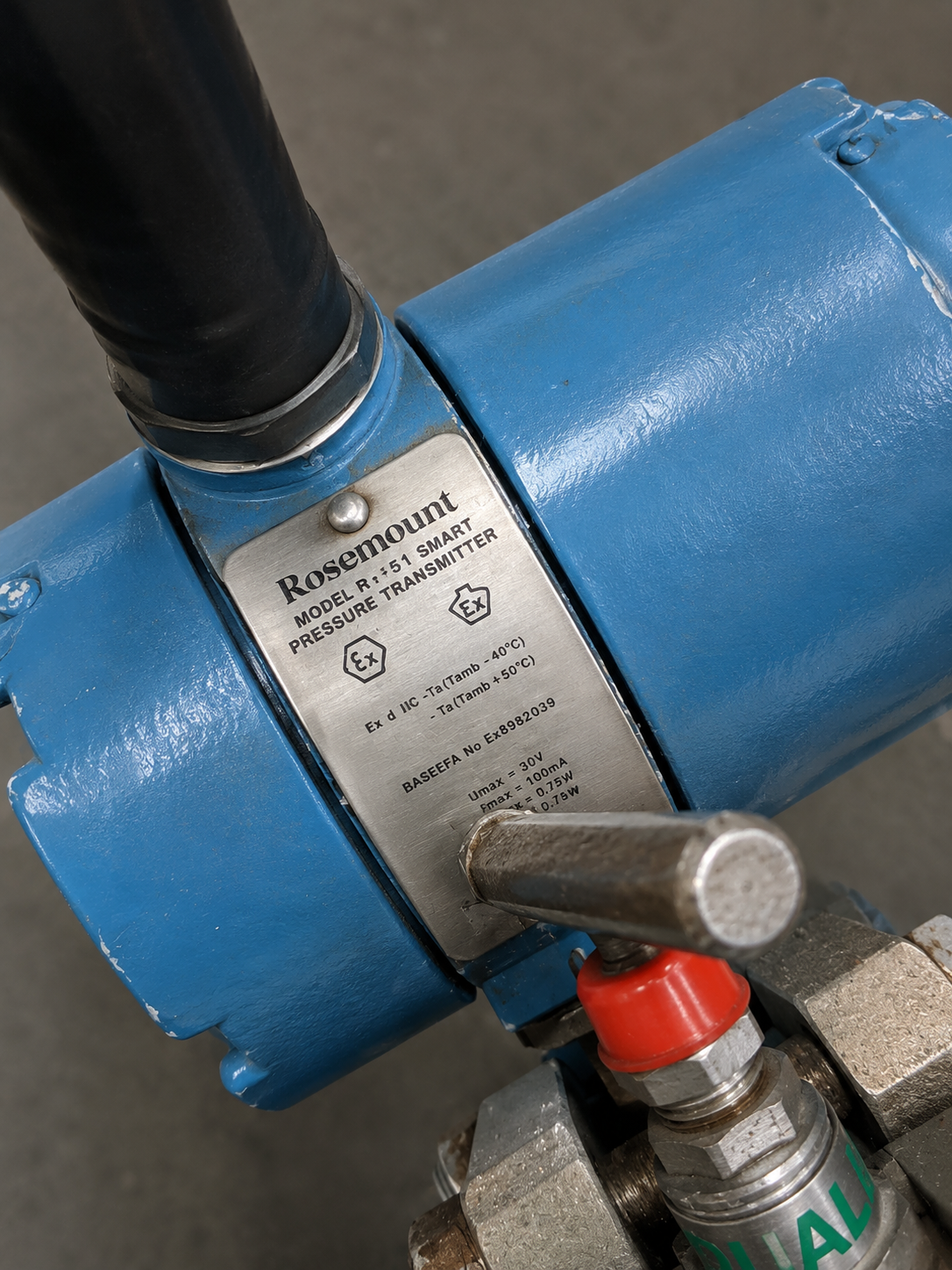

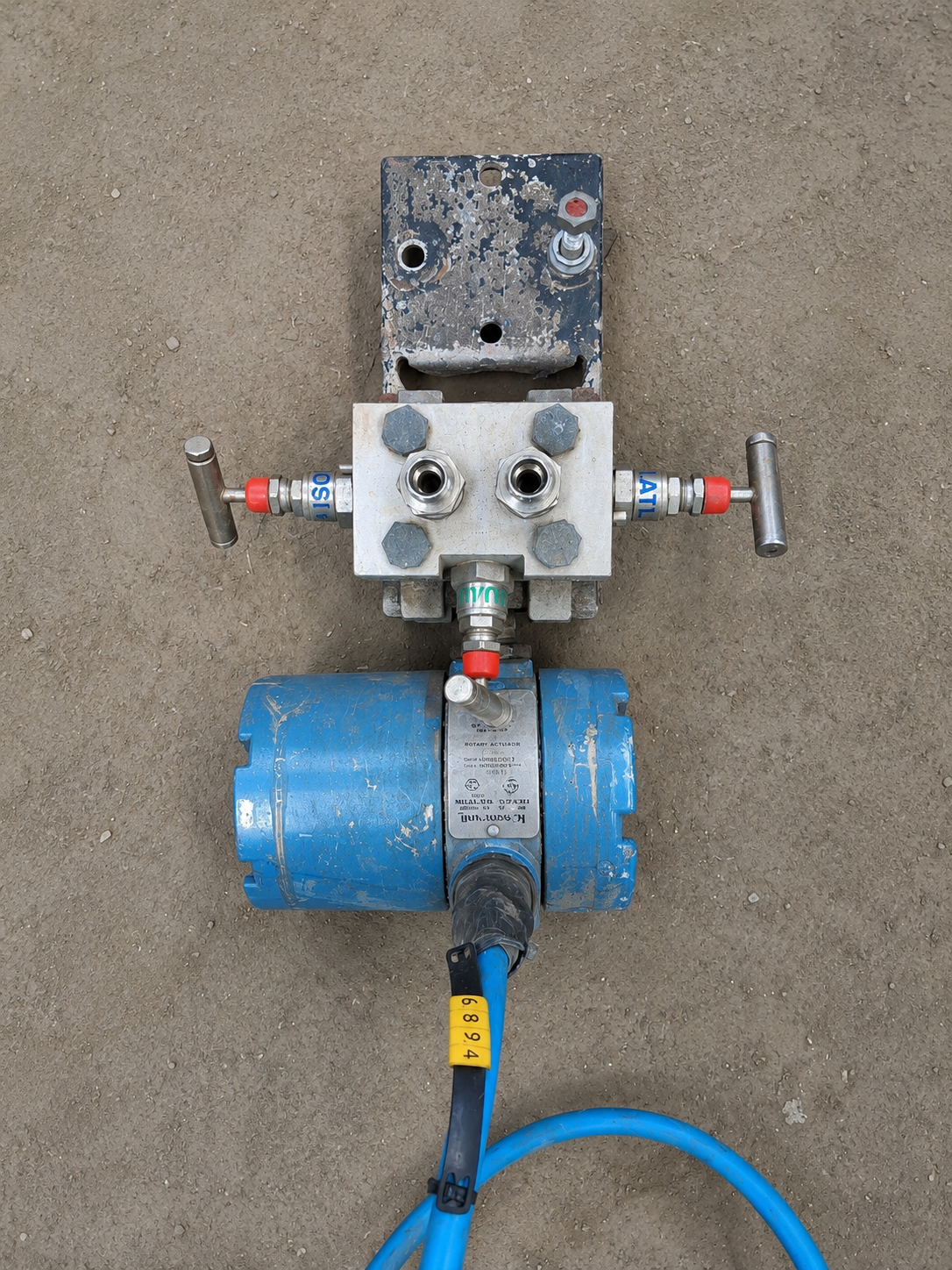

Rosemount E1151 Pressure Transmitter with Manifold

The Rosemount 1151 Pressure Transmitter is a rugged, industry-proven smart pressure transmitter designed for accurate measurement of differential pressure, gauge pressure, liquid level, flow, and process pressure in demanding industrial environments. Supplied with a valve manifold assembly, this transmitter allows convenient isolation, equalization, calibration, and maintenance without process shutdown. The Rosemount 1151 series became one of the most widely installed pressure transmitters in the oil & gas, chemical, power generation, and process industries due to its reliability, stability, and long service life.

Key Features

• Differential pressure measurement
• Suitable for flow, level, and pressure applications
• Integral valve manifold included
• High long-term stability
• Rugged industrial design
• Proven field reliability
• Stainless steel wetted components
• Low maintenance operation
• Suitable for hazardous area installations
• Industry-standard 4–20 mA output

Specifications

• Manufacturer: Rosemount
• Series: 1151
• Type: Pressure / Differential Pressure Transmitter
• Measurement Types:
  • Differential Pressure
  • Liquid Level
  • Flow Measurement
  • Process Pressure Monitoring
• Output Signal:
  • 4–20 mA DC
• Power Supply:
  • 12–45 VDC
• Accuracy:
  • Up to ±0.25% of calibrated span
• Wetted Materials:
  • 316 Stainless Steel
• Process Connections:
  • 1/4" NPT process ports
• Manifold:
  • 3-valve or 5-valve manifold configuration (depending on supplied unit)
• Operating Temperature:
  • Suitable for industrial process environments
• Certifications:
  • ATEX, FM, CSA and IEC hazardous area approvals available depending on configuration

Function

The Rosemount 1151 measures pressure by sensing the differential force acting across an isolation diaphragm and converting this into a proportional 4–20 mA output signal. When installed across an orifice plate, venturi, or flow element, it can accurately measure flow. It can also be used for tank level measurement, filter monitoring, pump performance monitoring, and general process pressure applications. The included manifold simplifies commissioning, calibration, and maintenance operations.

Typical Applications

• Oil & gas production
• Chemical processing
• Refineries
• Power generation
• Water and wastewater treatment
• Tank level measurement
• Flow measurement systems
• Filter differential pressure monitoring
• General industrial process control
