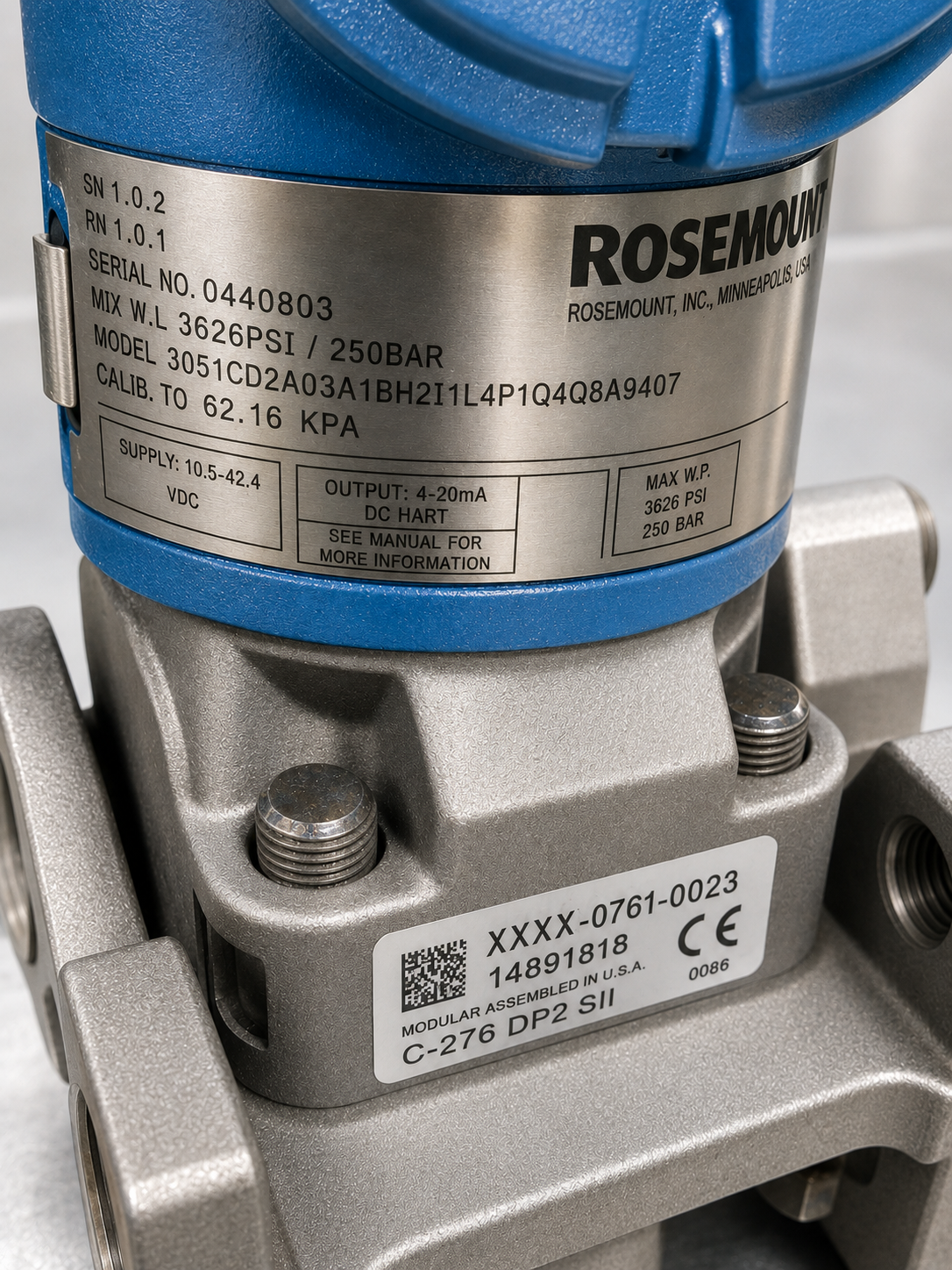

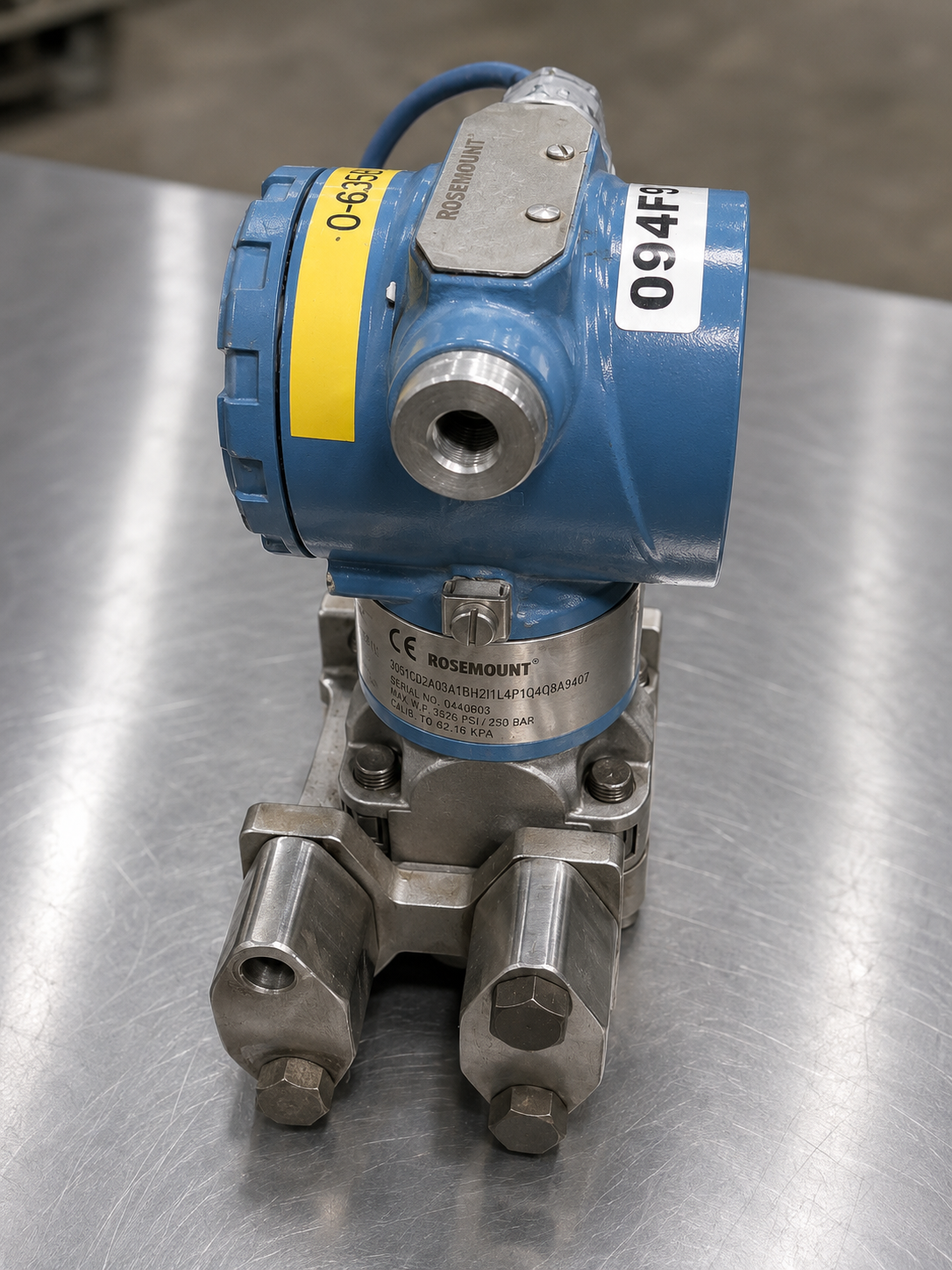

Rosemount Differential Pressure Transmitter 3051CD2A03A1BH2I1L4P1Q4Q8A9407

The Rosemount 3051CD is a high-performance smart differential pressure transmitter designed for accurate measurement of differential pressure, flow, level, and density in demanding industrial applications. Its industry-proven Coplanar™ platform delivers excellent long-term stability, reliability, and measurement accuracy.

Key Features

• Differential pressure measurement
• Suitable for flow, level, and pressure monitoring applications
• Advanced HART communication capability
• High accuracy and long-term stability
• Rangedown capability up to 150:1
• Differential pressure measurement up to 2000 psi (137.9 bar)
• Compatible with 4–20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, and PROFIBUS® communication options (depending on configuration)
• Robust industrial design for harsh environments
• SIL 2/3 certified versions available for safety-critical applications
• Comprehensive diagnostic capabilities for improved process reliability
• Ex ia IIC T5...T4 Ga BAS97ATEX1089X II 1 G

Typical Applications

• Process pressure monitoring
• Differential pressure measurement
• Flow measurement with primary flow elements
• Tank level measurement
• Filter and pump monitoring
• Oil & gas, chemical, power generation, water treatment, and manufacturing industries
