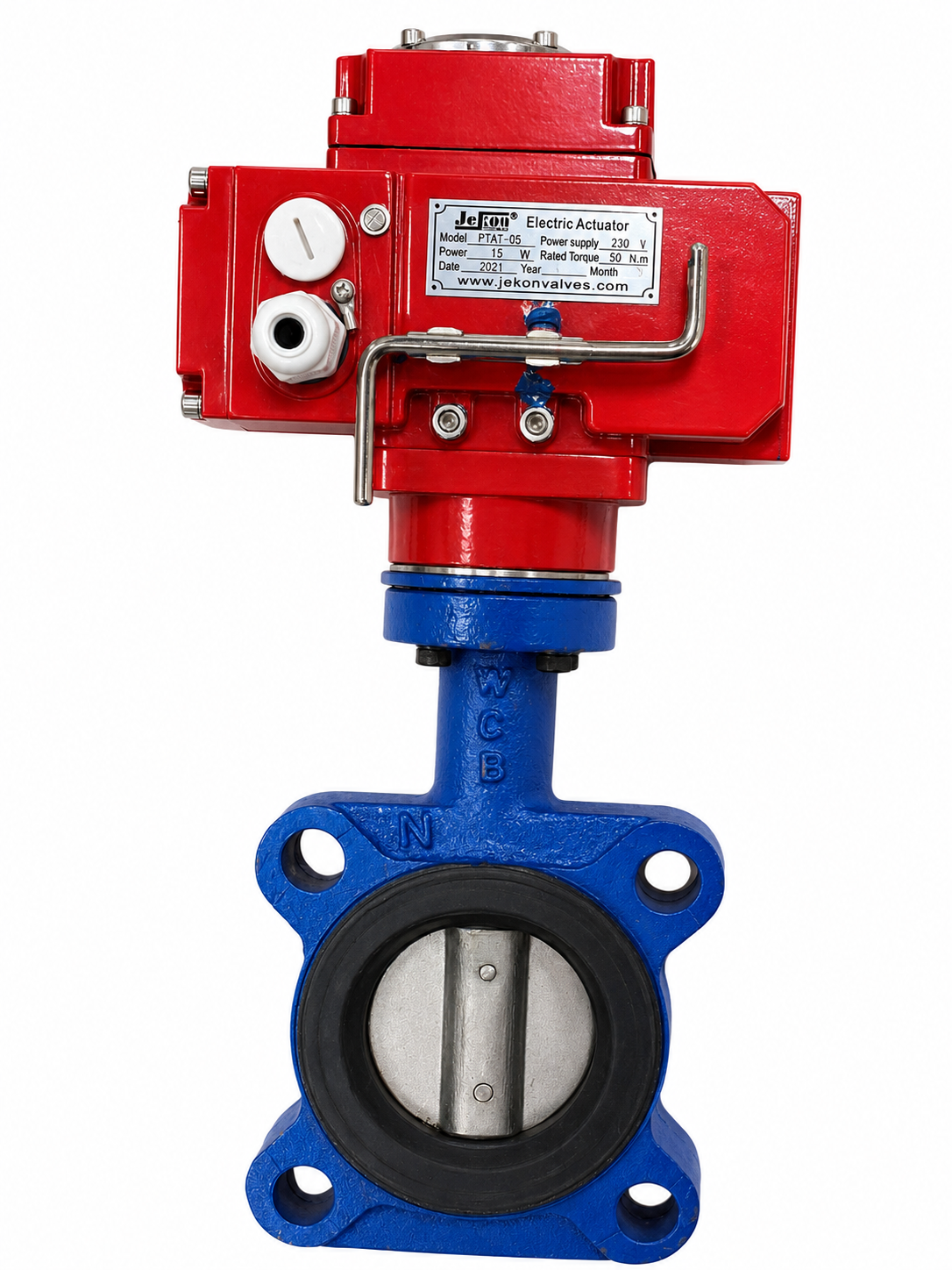

JEKON CONTROLS PTAT-05 Electrically Actuated Butterfly Valve

The JEKON CONTROLS PTAT-05 Electrically Actuated Butterfly Valve is an industrial-grade automated flow control valve designed for reliable on/off or modulating control of liquids, gases, air, and other process media. Combining a quarter-turn butterfly valve with a PTAT-series electric actuator, this unit provides remote operation and precise flow control for industrial automation systems, water treatment plants, HVAC installations, chemical processing, and manufacturing facilities.

Key Features

• Electrically actuated butterfly valve assembly
• Quarter-turn operation (0°–90° valve control)
• Suitable for automated flow isolation and regulation

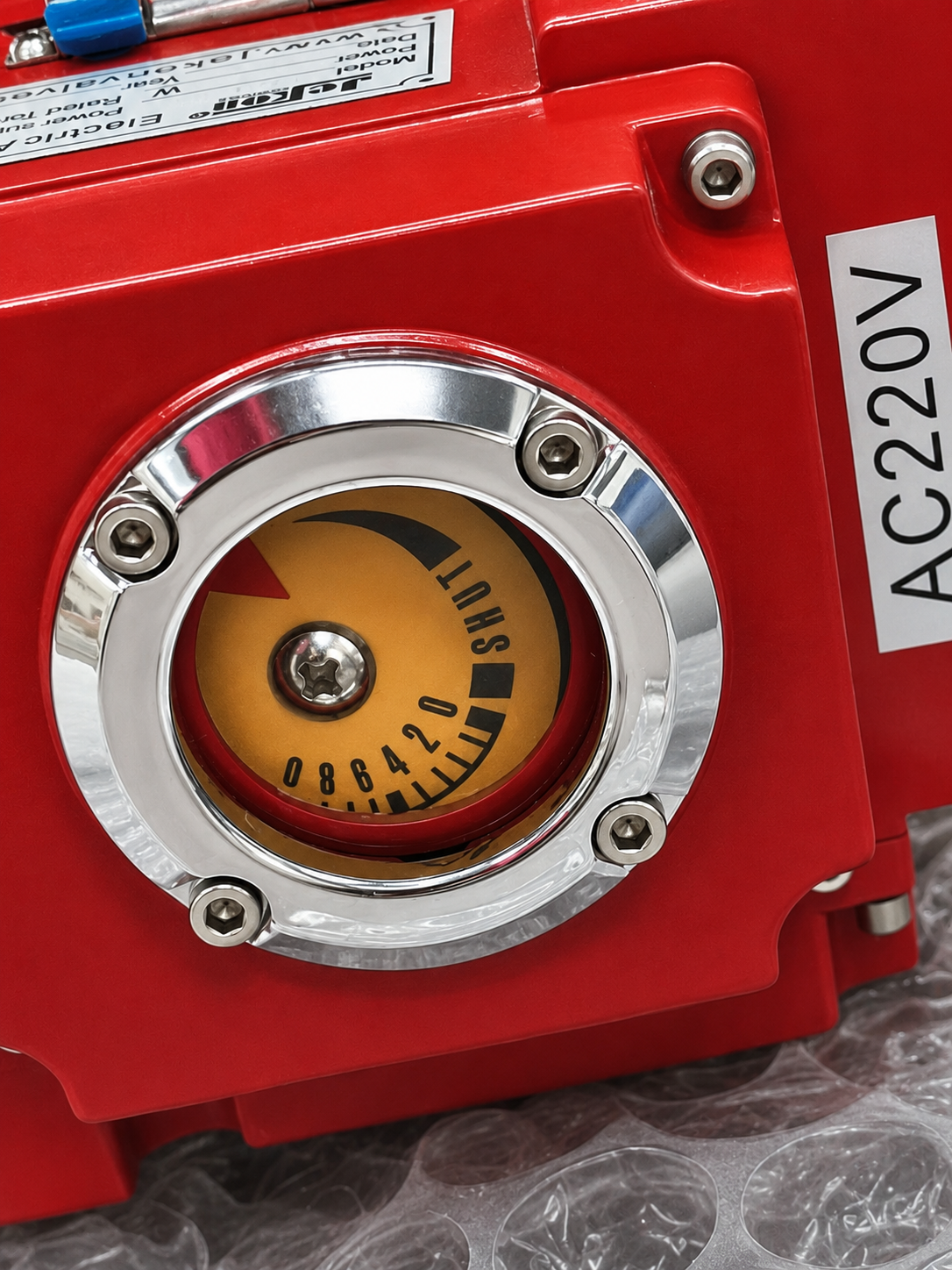

• Electric actuator with manual override capability
• Compact aluminium alloy actuator housing
• Corrosion-resistant construction
• IP67-rated actuator enclosure
• Available for ON/OFF or modulating control applications
• Supports remote automation and PLC integration
• Stainless steel fasteners for improved durability

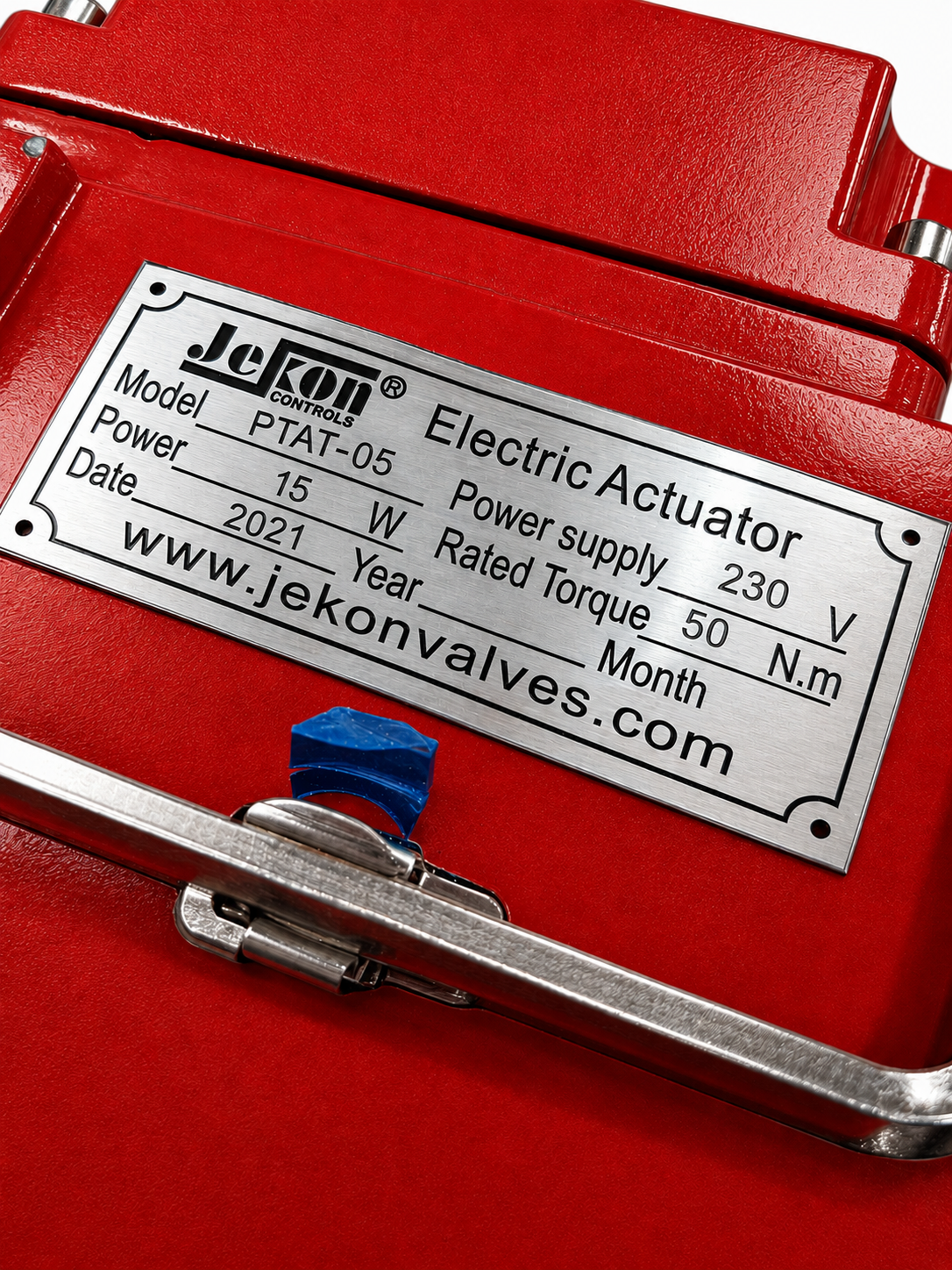

Specifications

• Manufacturer: JEKON Controls
• Model: PTAT-05
• Type: Electrically Actuated Butterfly Valve
• Actuator Series: PTAT Electric Actuator
• Valve Operation: Quarter Turn
• Rotation Range: 0°–90°
• Actuator Housing: Aluminium Alloy
• Protection Rating: IP67
• Supply Voltage: 110V AC, 220V AC, or 380V AC (configuration dependent)
• Control Signals:
  • ON/OFF Control
  • 4–20 mA Modulating Control
  • 0–10 VDC Control
• Motor Protection: Built-in thermal overload protection
• Manual Override: Included
• Feedback Options: 4–20 mA / 0–10 V feedback (model dependent)
• Typical Media:
  • Water
  • Air
  • Oils
  • General industrial fluids
• Typical Pressure Rating: Up to PN16 (valve dependent)

Function

The PTAT-05 electrically actuated butterfly valve is designed to automatically open, close, or regulate flow within a pipeline. The electric actuator converts electrical control signals into mechanical movement, rotating the butterfly disc to control media flow. This allows integration into automated process control systems without the need for manual valve operation.

Typical Applications

• Water treatment plants
• HVAC systems
• Chemical processing
• Industrial automation
• Process control systems
• Compressed air systems
• Utility and service water networks
• Manufacturing facilities
• Oil and gas support systems
