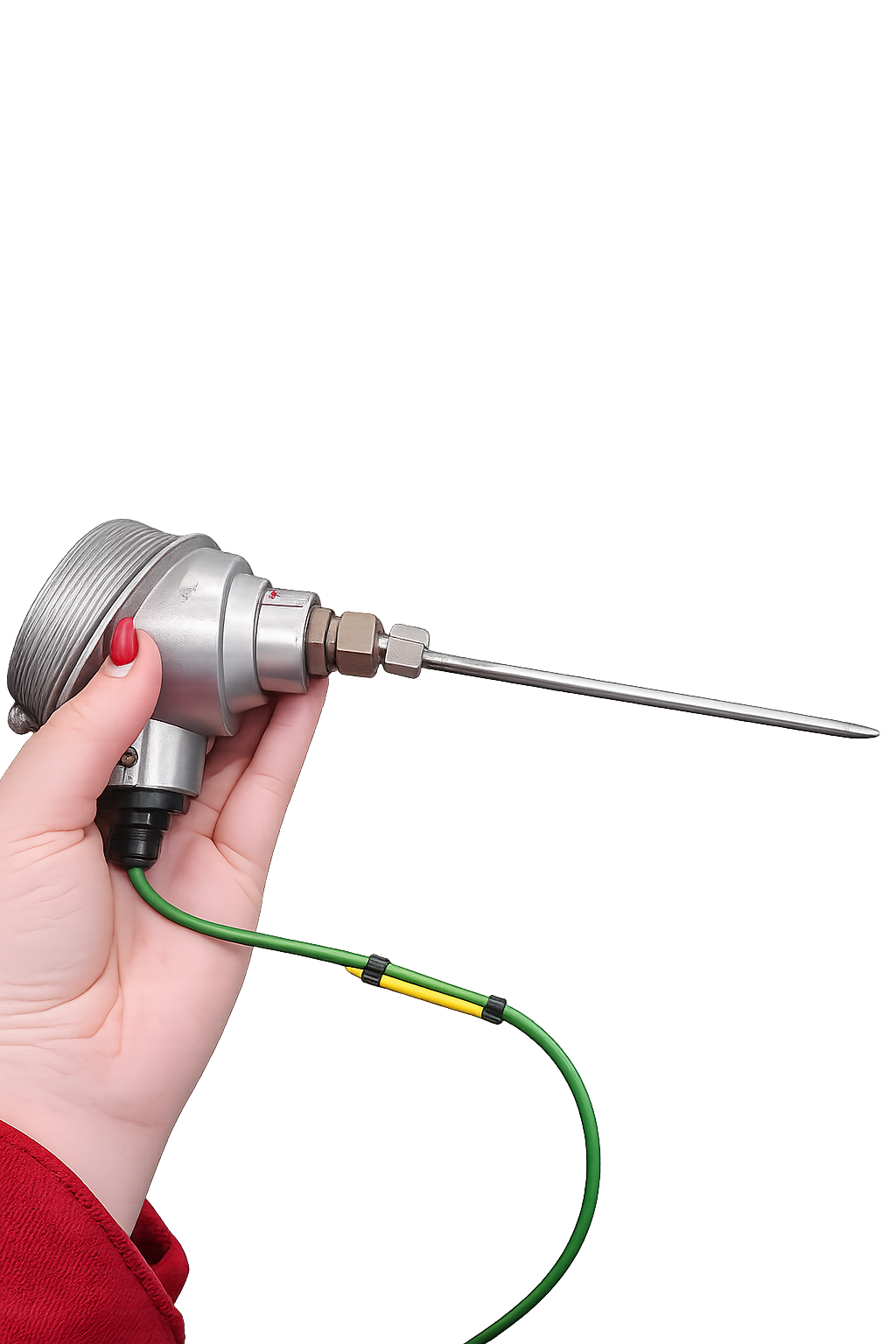

IME 1080AE Temperature Sensor 230mm

The IME 1080AE is a heavy-duty industrial temperature sensor assembly designed for accurate temperature measurement in hazardous and demanding environments. Featuring an explosion-proof thermocouple head and temperature probe, the unit is suitable for use in oil & gas, petrochemical, power generation, and general process industries where reliable temperature monitoring is essential. The explosion-proof housing protects the sensor connections and can accommodate a terminal block or head-mounted temperature transmitter.

Key Features

• Industrial temperature sensing assembly
• Explosion-proof thermocouple head design
• Suitable for hazardous area installations
• Rugged construction for harsh industrial environments

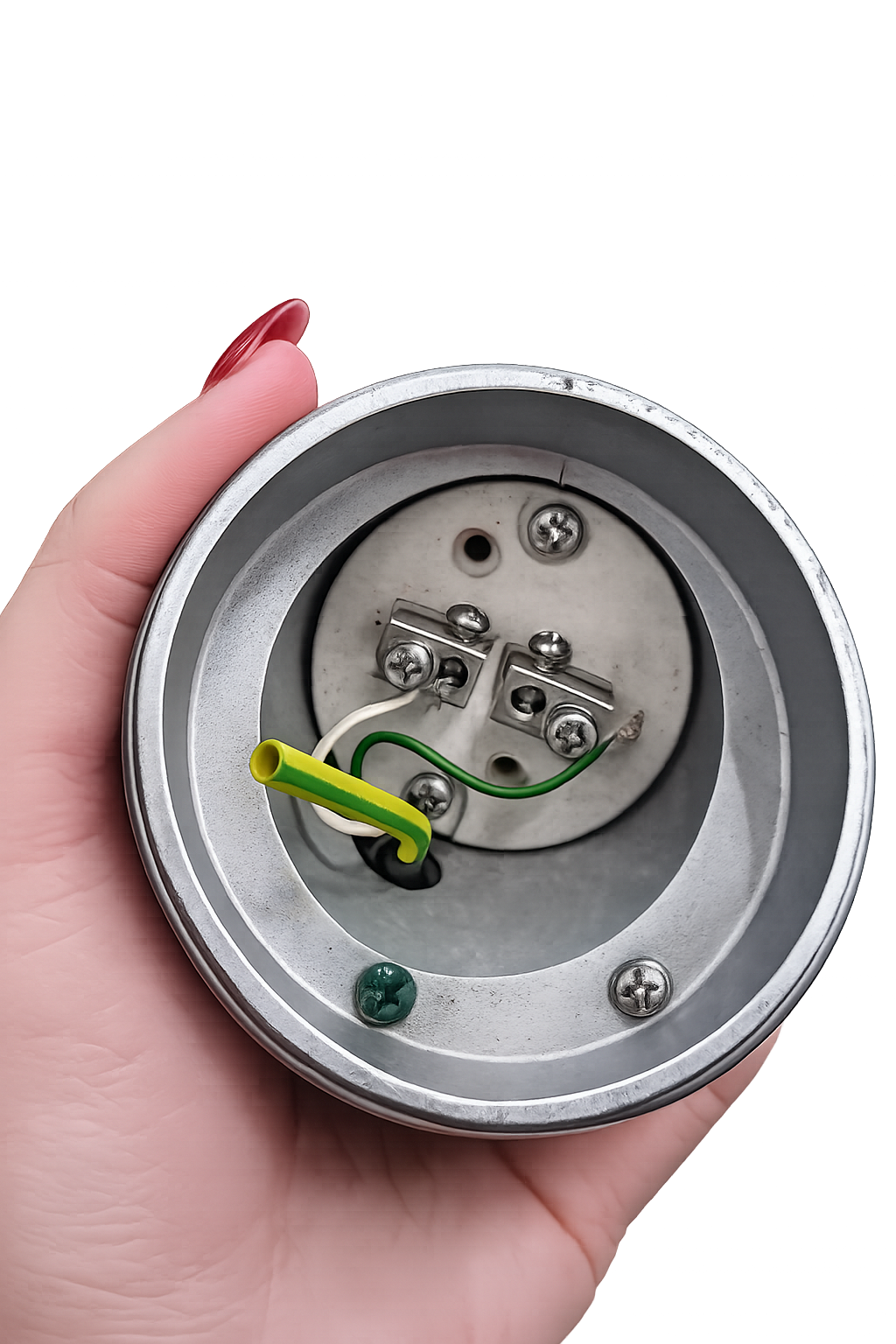

• Accommodates terminal blocks or head-mounted transmitters
• Designed for thermocouple or RTD temperature measurement systems
• Corrosion-resistant construction suitable for aggressive atmospheres
• Ideal for process plants, refineries, chemical facilities, and power stations.

Specifications

• Model: IME 1080AE
• Type: Temperature Sensor / Thermocouple Head Assembly
• Housing: Explosion-Proof
• Connection Sizes: 3/4" FNPT conduit connection and 1/2" FNPT instrument connection (typical configuration)
• Environmental Protection: NEMA 4 / IP66 rated enclosure
• Hazardous Area Certifications: FM, CSA, ATEX and IECEx versions available depending on configuration
• Transmitter Compatibility: Accepts standard terminal blocks or head-mounted transmitters up to 50 mm (2") diameter

Typical Applications

• Process temperature monitoring
• Oil & gas installations
• Chemical processing plants
• Power generation facilities
• Industrial heating and cooling systems
• Hazardous area temperature measurement.
