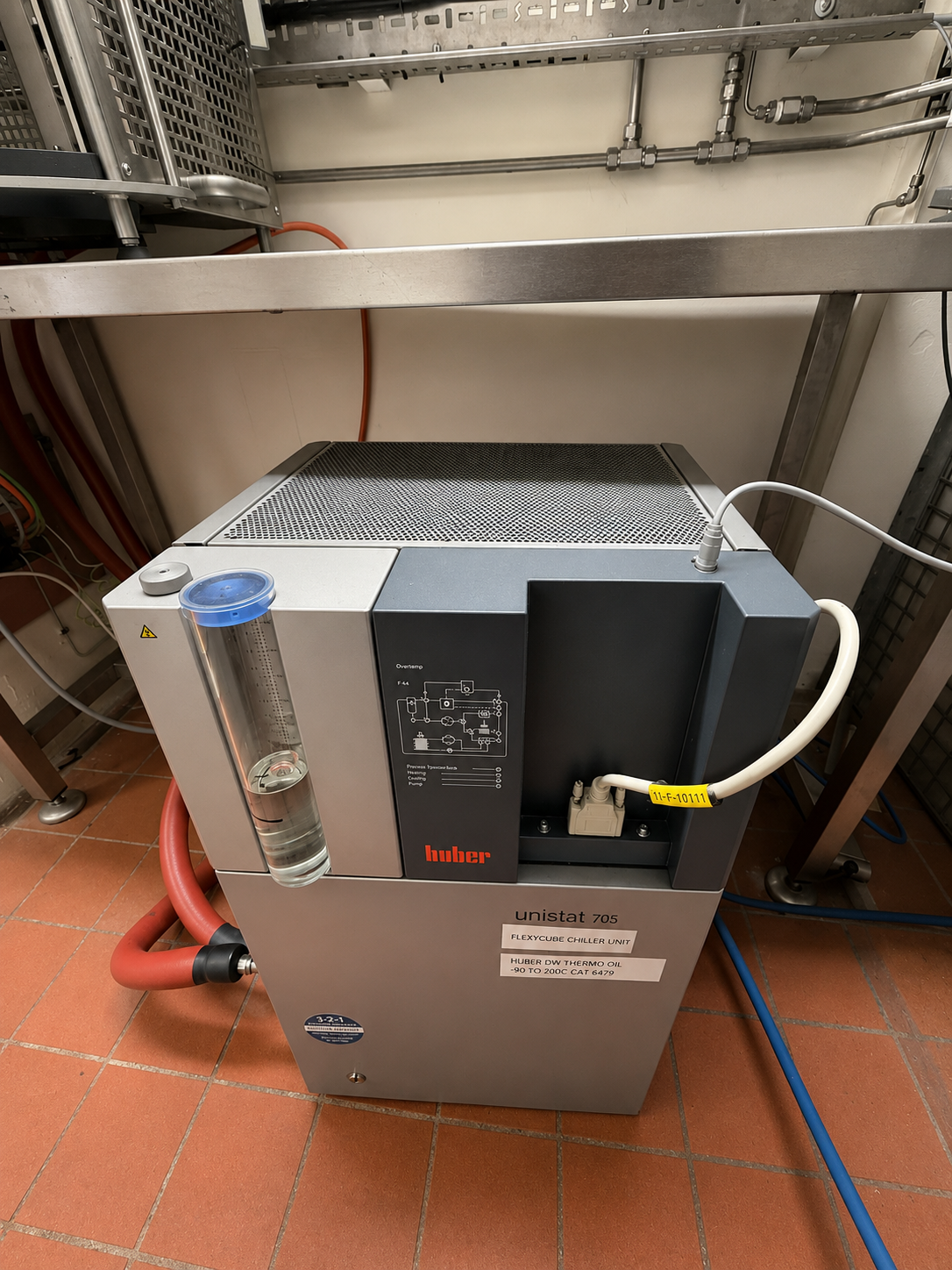

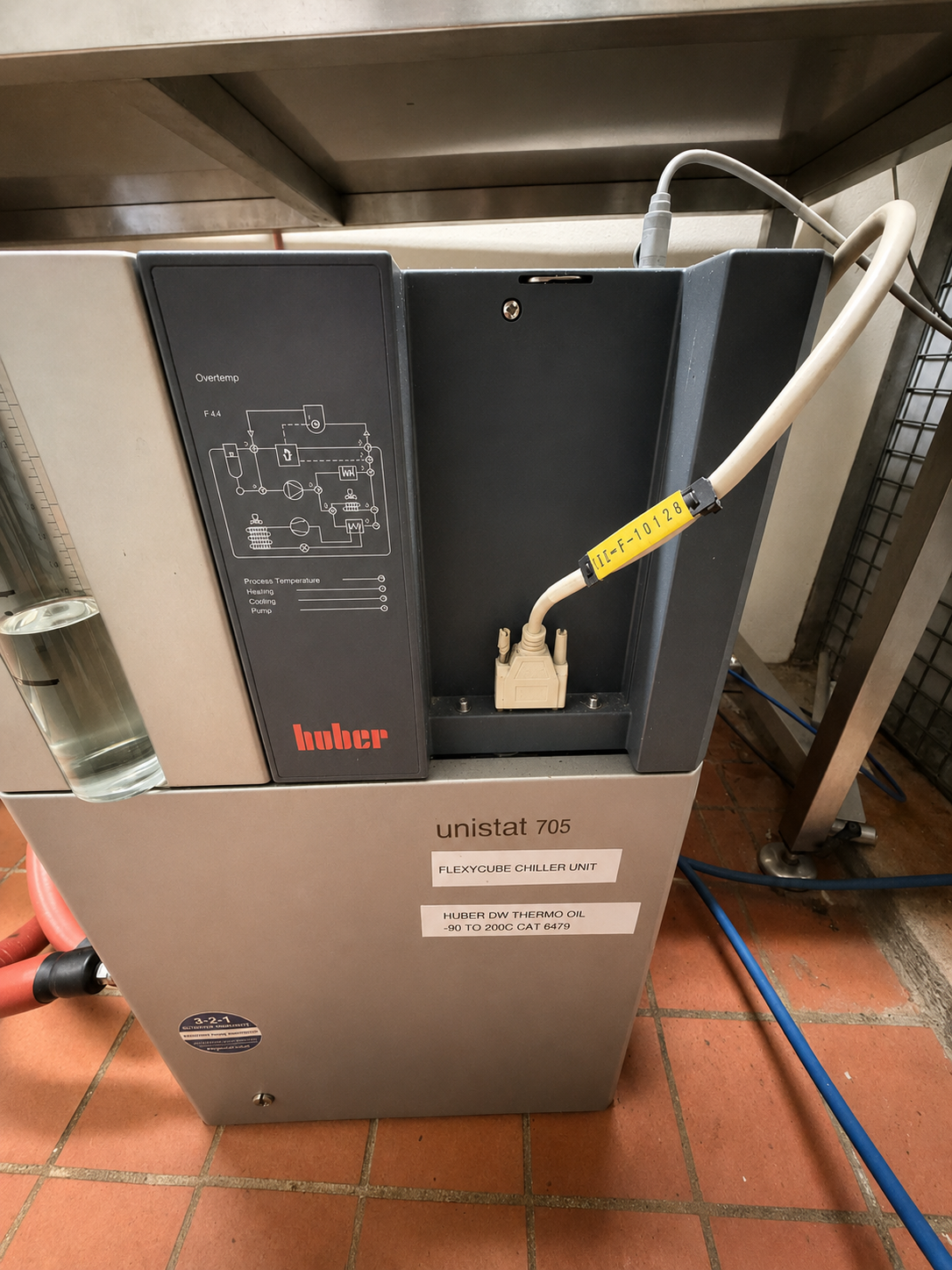

Peter Huber Unistat 705w dynamic temperature control system / circulation thermostat, designed for precise heating and cooling of laboratory and process equipment.

Specifications:

• Manufacturer: Peter Huber Kältemaschinenbau
• Model: Unistat 705w
• Type: Dynamic temperature control system / circulation thermostat
• Temperature range: -75°C to +250°C
• Temperature stability: ±0.01 K
• Heating capacity: 3 kW
• Cooling capacity: Up to 0.65 kW
• Circulation pump: Up to 55 L/min
• Maximum pump pressure: 0.9 bar

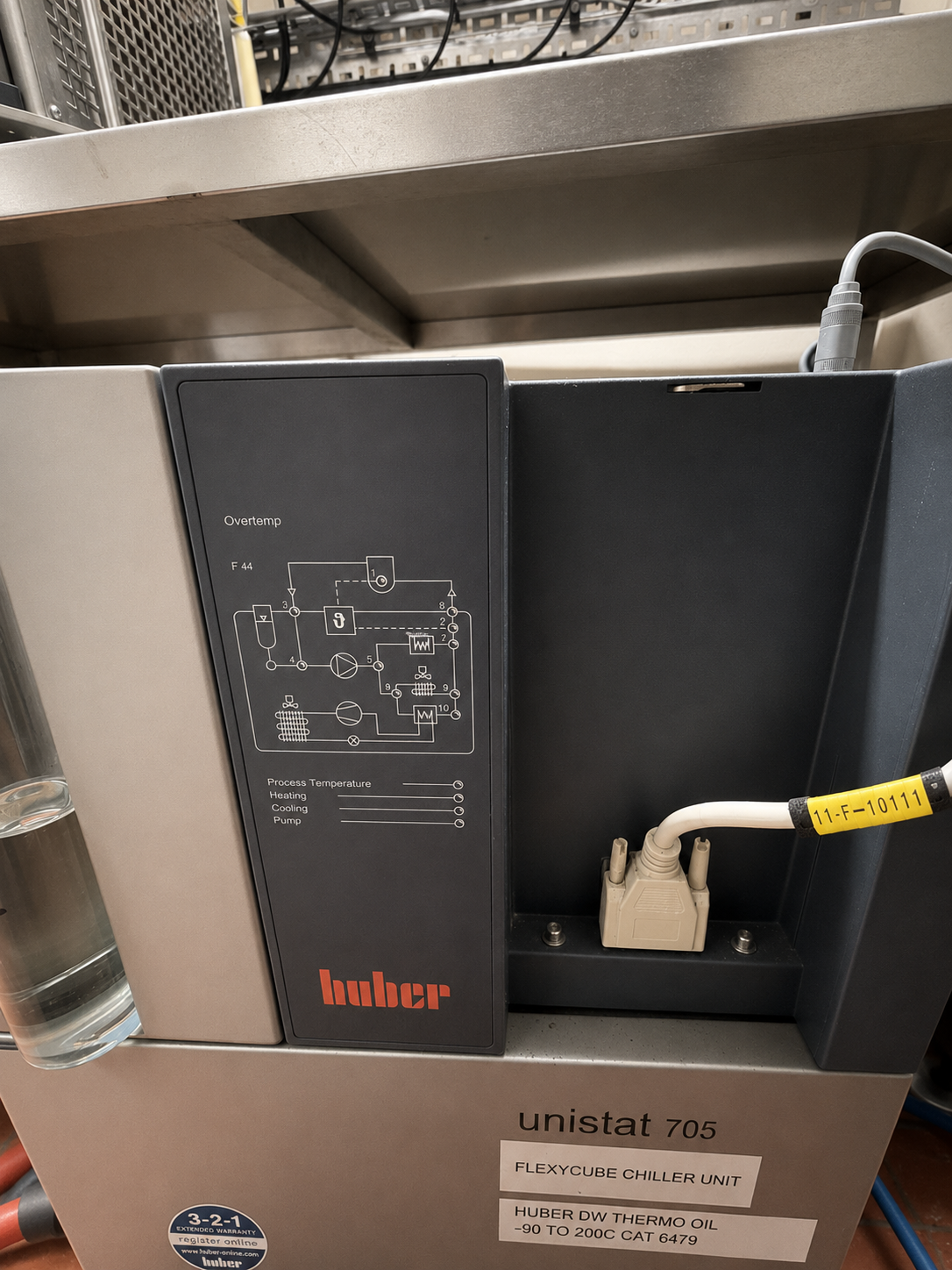

• Controller: Pilot ONE touchscreen
• Interfaces: Ethernet, USB and RS232
• External sensor: Pt100

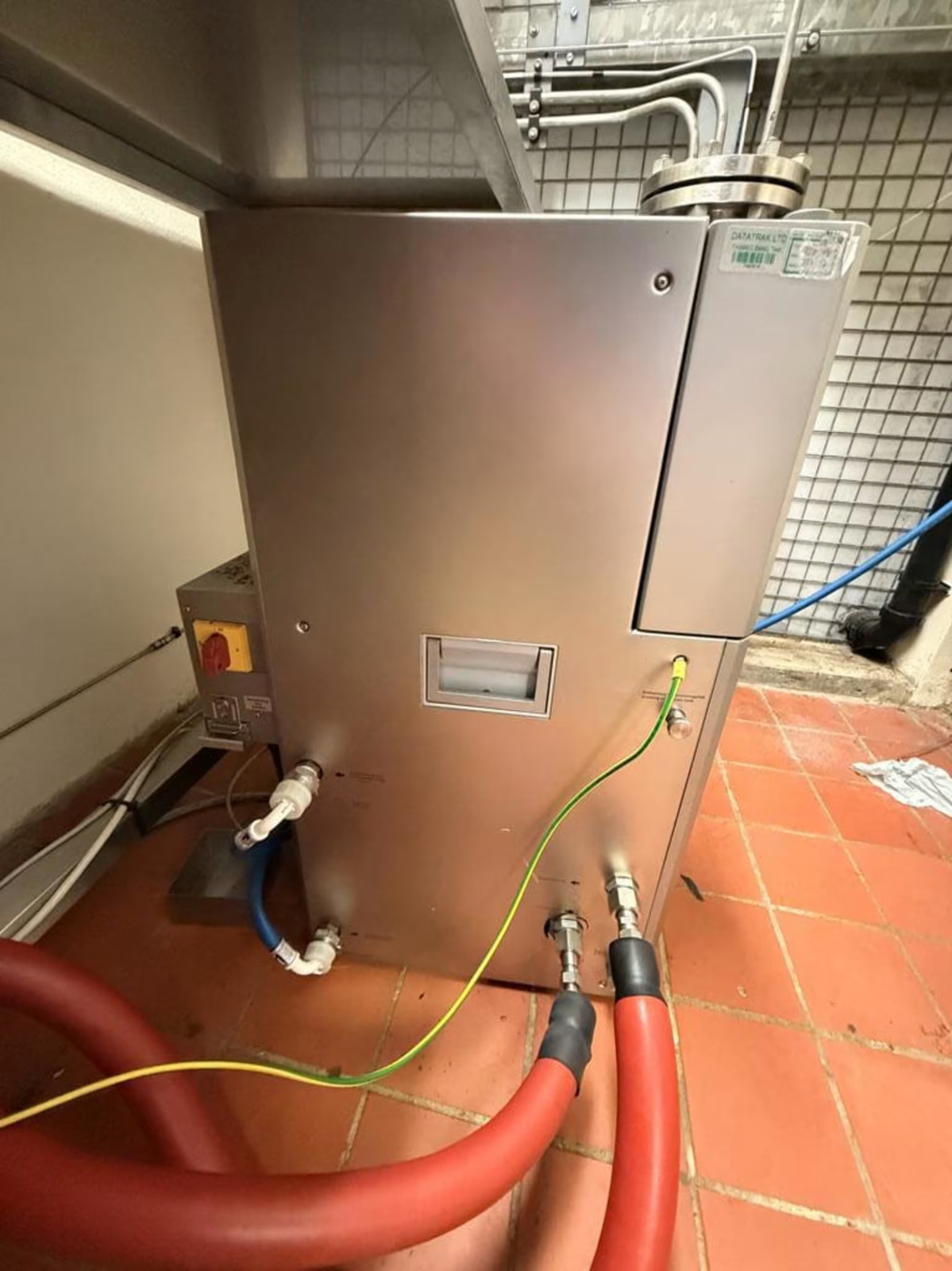

• Cooling: Water-cooled
• Power supply: 400 V, 3-phase, 50 Hz
• Dimensions: Approx. 426 × 399 × 719 mm
• Weight: Approx. 92 kg

The Unistat 705w provides precise, reproducible temperature control over a very wide range without requiring frequent changes of heat-transfer fluid. It is suitable for laboratory reactors, chemical process equipment, pharmaceutical R&D, reaction testing and other temperature-controlled applications.

Condition: Used laboratory/process equipment.
