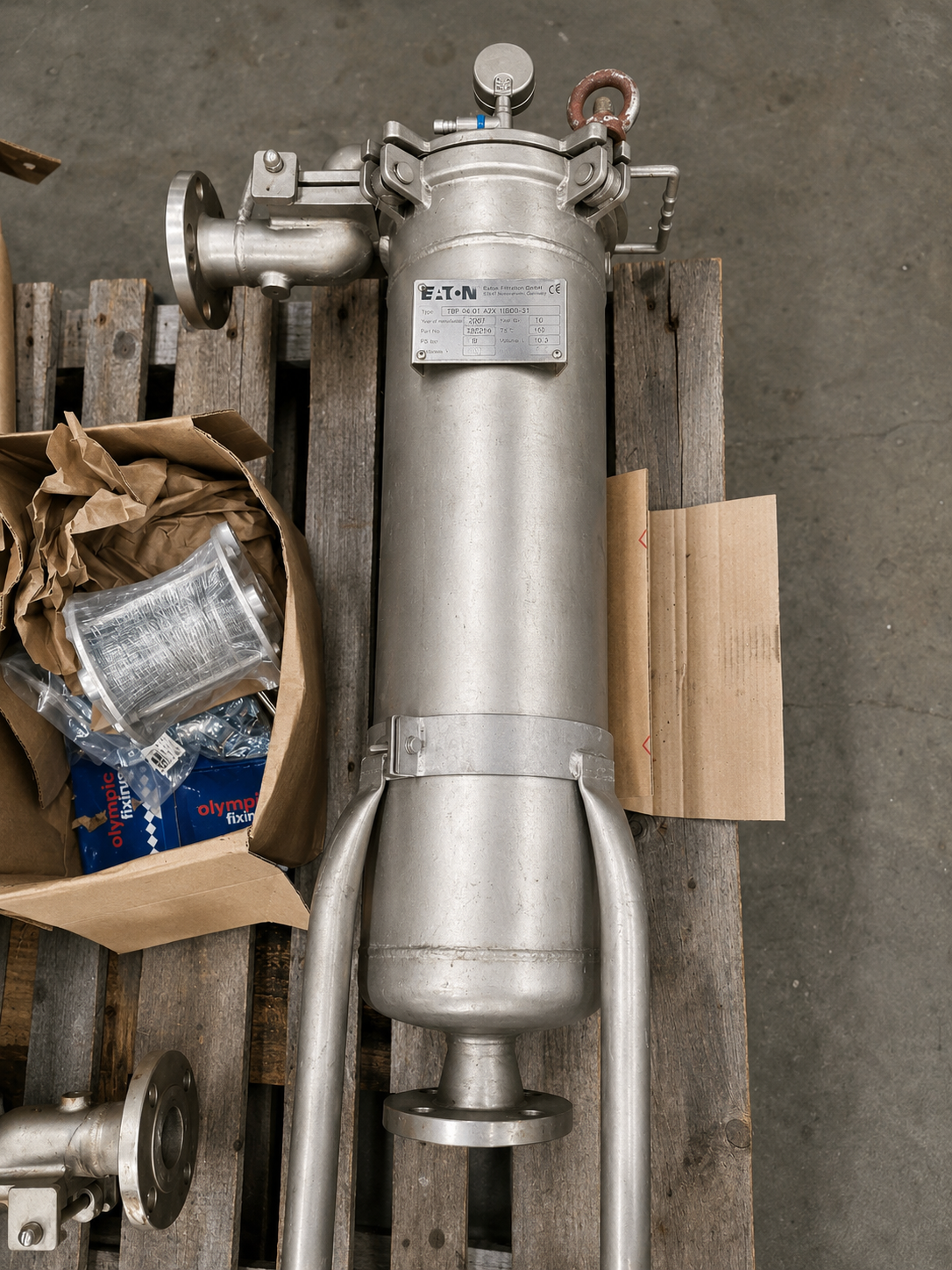

Eaton TOPLINE TBF-0102-AD10-020AX Filter Housing Stainless Steel 10 Bar

This is a heavy-duty stainless-steel filter housing designed for industrial liquid filtration applications.

The Eaton TOPLINE range is designed for applications including chemical processing, petrochemicals, water and wastewater, oils, pharmaceuticals and general industrial filtration.

Specification

• Manufacturer: Eaton
• Series: TOPLINE
• Type: Bag Filter Housing
• Model: TBF-0102

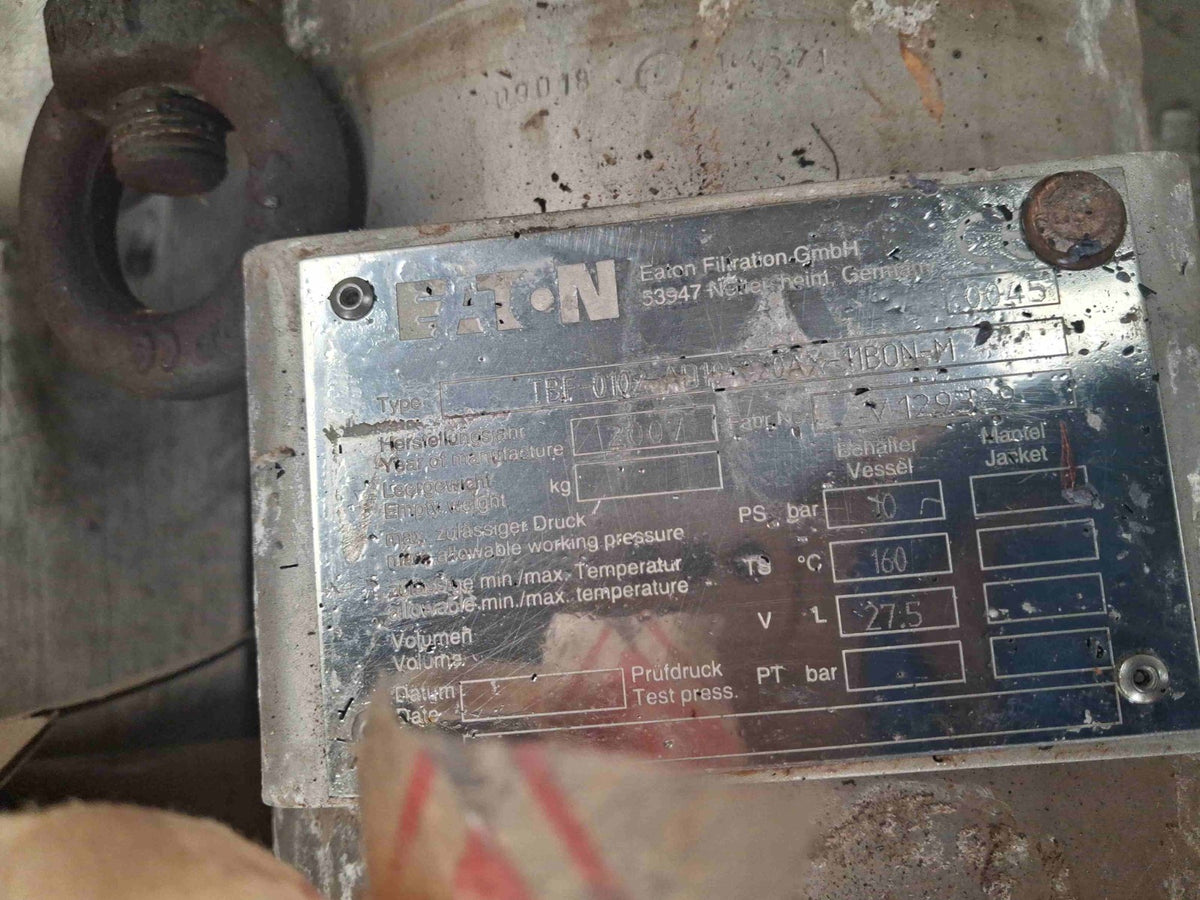

• Full model code: TBF-0102-AD10-020AX-11BON-M
• Filter bag size: Size 02
• Filter bag dimensions: Approx. 180 × 810 mm
• Number of bags: 0
• Housing volume: Approx. 27.5 litres
• Maximum design pressure: 10 bar
• Maximum temperature: 160°C
• Construction: Stainless steel
• Closure: Hinged/swing-bolt type cover
• Connections: Flanged
• Condition: Used

Eaton specifies the standard TBF-0102 at approximately 42 kg, with dimensions around 486 mm wide × 934 mm high × 219 mm deep depending on configuration.

Please note: the internal filter mesh/basket is NOT included.
