De Dietrich SAS Glass-Lined Chemical Reactor Vessel 10000L 11745L Capacity 6 bar

We have a wide range of industrial items such as Reaction Vessels,valves, pressure transmitters, temperature transmitters, flow meters, and loads more!

Contact us before purchasing.

MSTAK Contact Number: 07915071899
MSTAK Email: mdalrymple@stakam.co.uk

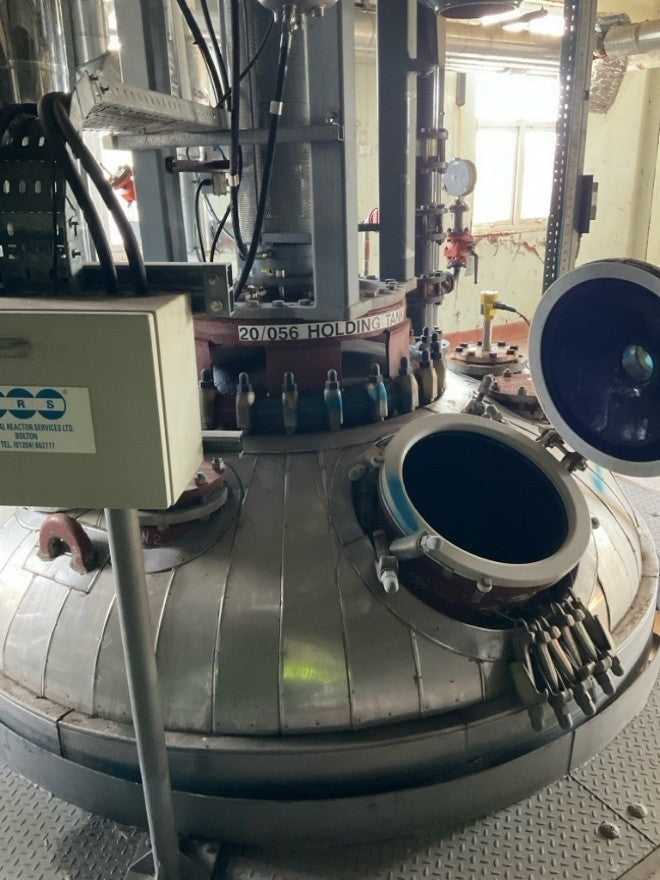

Removed from ICI Grangemouth, fully tested and ready to ship!

De Dietrich SAS glass-lined chemical reactor vessel. Working volume 10,000 litres, total vessel capacity 11,745 litres, jacket capacity 860 litres. Overall dimensions 2,400 mm by 3,180 mm. Rated pressure 6 / -1 bar for both vessel and jacket. Temperature range -25°C to +230°C for vessel and jacket. Vessel shell and jacket diaphragm to ASME SA-285 Grade B. Vessel heads and all other jacket sections to ASME SA-516-60. Fitted with ABB motor, 22-25 kW, 50/60 Hz, multiple voltage options. In excellent condition, spark tested and ready for immediate use. This is a high-quality, extremely expensive item built for demanding chemical processing applications. Please message with any questions before bidding or purchasing. Collection or shipping arranged world wide.



Vessel 1

Manufacturer: De Dietrich SAS

Type: Glass-lined chemical reactor vessel

Working volume: 10,000 litres

Total vessel capacity: 11,745 litres

Jacket capacity: 860 litres

Overall dimensions: 2,400 mm by 3,180 mm

Rated pressure: 6 / -1 bar (vessel and jacket)

Temperature range: -25°C to +230°C (vessel and jacket)

Vessel shell and jacket diaphragm: ASME SA-285 Grade B

Vessel heads and remaining jacket: ASME SA-516-60

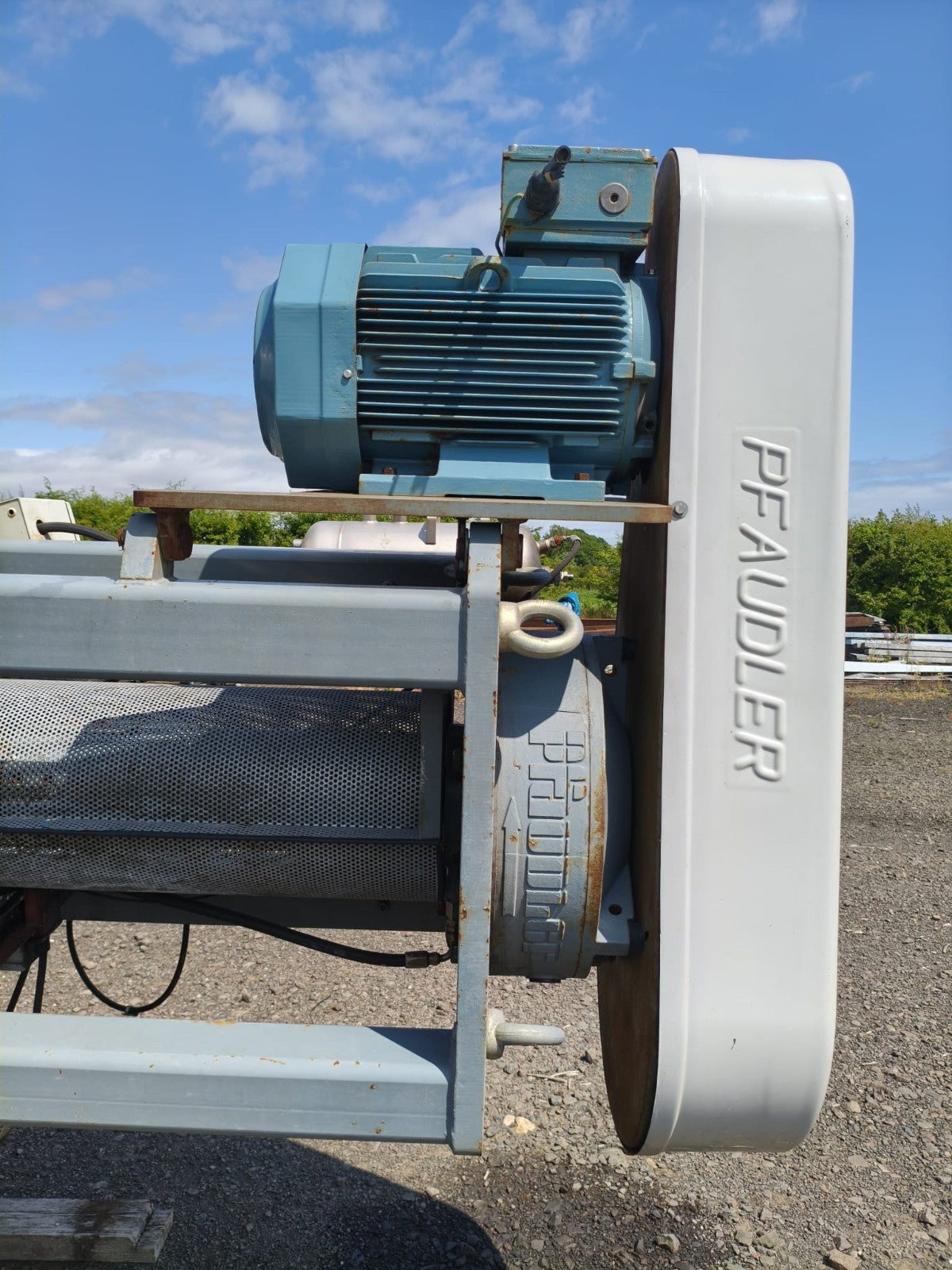

Motor: ABB, 22-25 kW, 50/60 Hz, multiple voltage options

Condition: Excellent, spark tested and ready for immediate use

.
