Chemquik Richter MNK-B/F 25-25-100 Magnetic Drive Chemical Centrifugal Pump

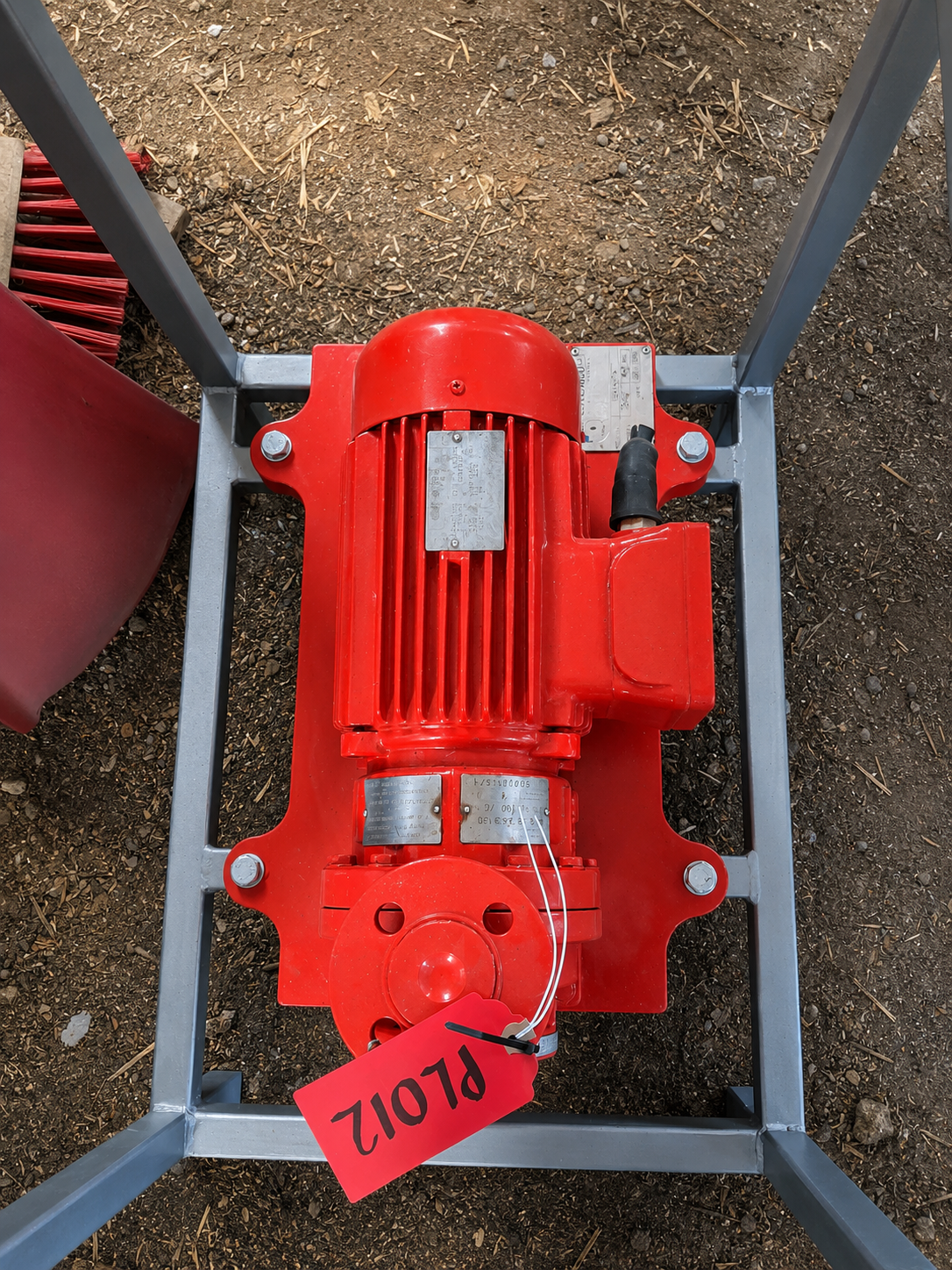

Industrial Chemquik Fluid Engineering magnetic-drive centrifugal chemical pump, model MNK-B/F 25-25-100, fitted with an explosion-protected electric motor and supplied mounted on a fabricated steel support frame.

The MNK-B/F is a close-coupled, sealless magnetic-drive chemical process pump, designed for handling chemical and industrial process fluids where a conventional mechanical shaft seal is undesirable. The magnetic coupling transfers drive to the impeller without a conventional shaft seal. Richter identifies the MNK-B/F series as a heavy-duty magnetic-drive chemical pump range.

Pump details:

• Manufacturer: Chemquik Fluid Engineering

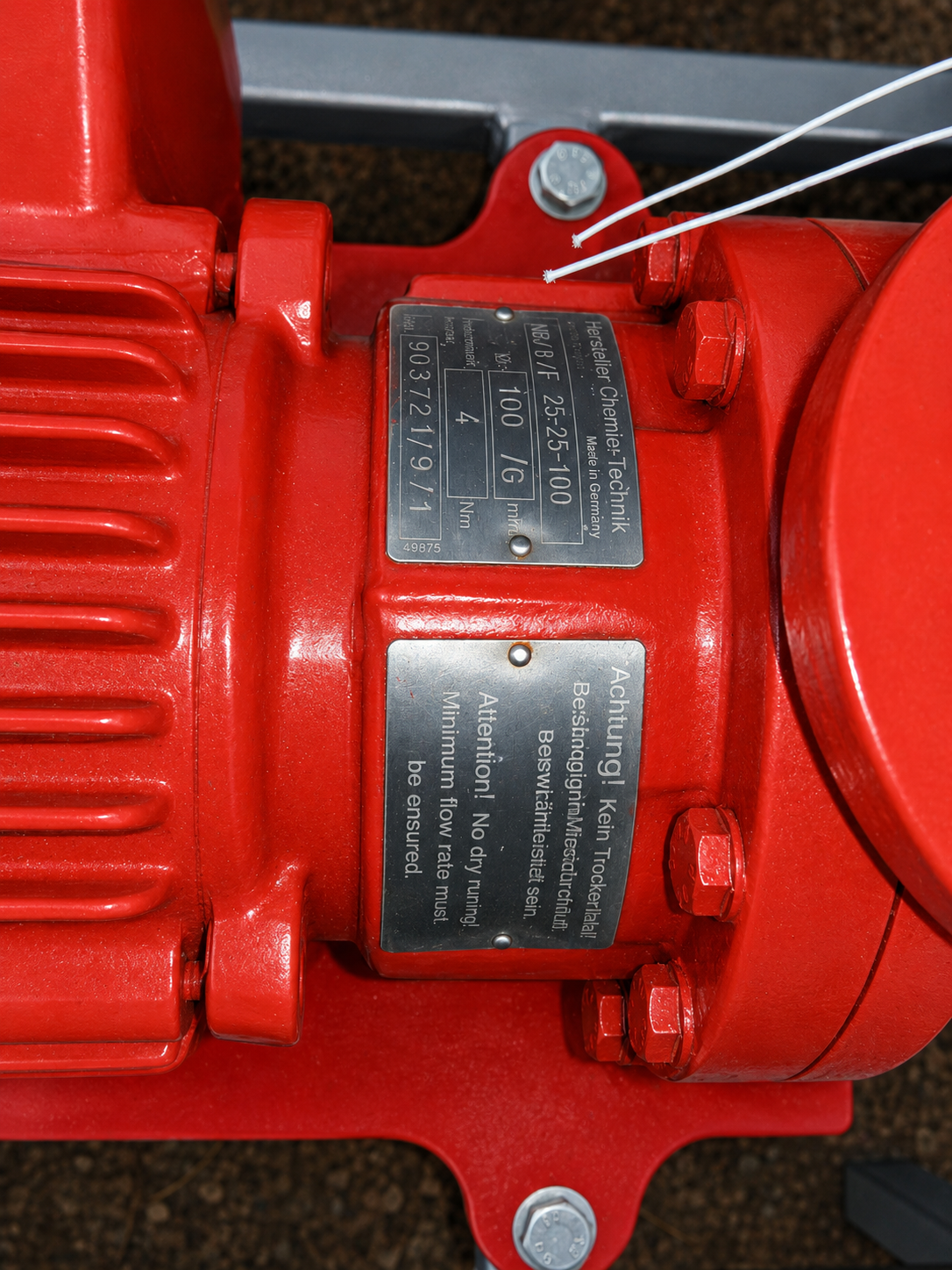

• Model: MNK-B/F 25-25-100
• Pump type: Magnetic-drive centrifugal pump
• Serial number: 2900
• Impeller diameter: 100 mm
• Speed: 1400 rpm
• Date of manufacture: June 2000
• Close-coupled construction
• Sealless magnetic-drive arrangement
• Mounted on steel support frame

Motor details:

• Explosion-protected motor
• Marking: EEx-d IIB T4
• 3-phase
• 230/400 V
• Approximately 1400 rpm
• IEC motor
• Approx. 0.75 kW rating as indicated by the motor plate

Condition:

Used industrial equipment
