BEKA BA654D Flow Batch Controller

BEKA BA654D Field Mounting Batch Controller

Genuine BEKA BA654D industrial batch controller designed for accurate control and monitoring of liquid, solid, and component dispensing applications. The BA654D is a robust field-mounted unit widely used in process control, water treatment, chemical processing, food production, and industrial automation systems.

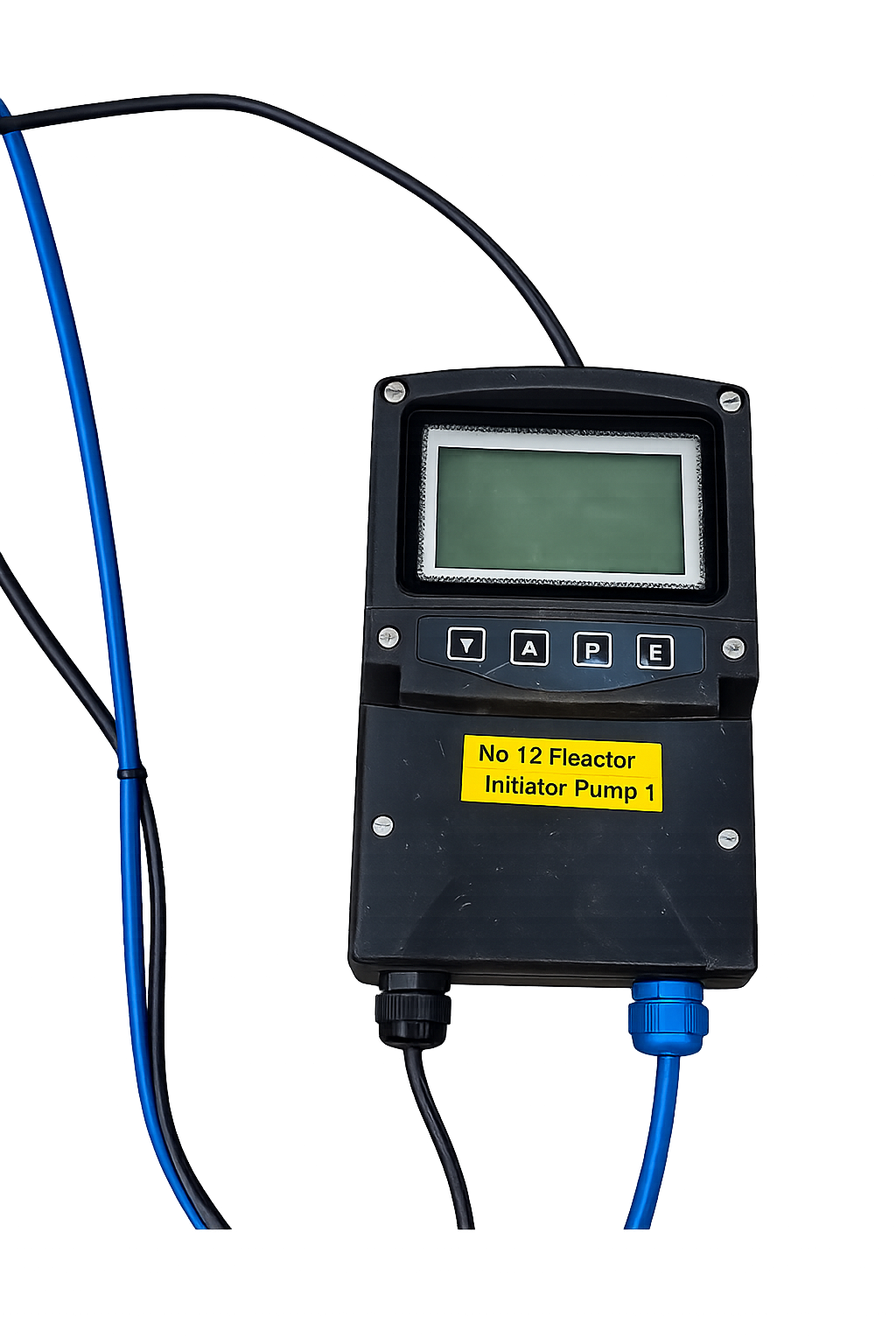

Featuring a large backlit graphic display and intuitive operator controls, the BA654D supports both pulse and 4–20mA flowmeter inputs, allowing precise batch control with single, dual, or three-stage operation. The controller is housed in a durable IP66-rated glass reinforced polyester enclosure suitable for demanding industrial environments.

Key Features

• BEKA BA654D Batch Controller

• Large backlit LCD display

• Field-mounted industrial design

• Supports pulse and 4–20mA flowmeter inputs

• Single, dual, or three-stage batch control

• Programmable batch sizes and setpoints

• Batch history and operator menu functions

• Three relay outputs as standard

• Flow alarm functionality

• Pulse output capability

• Security-protected configuration menus

• IP66 weatherproof enclosure

• Suitable for indoor and outdoor industrial installations

Specifications

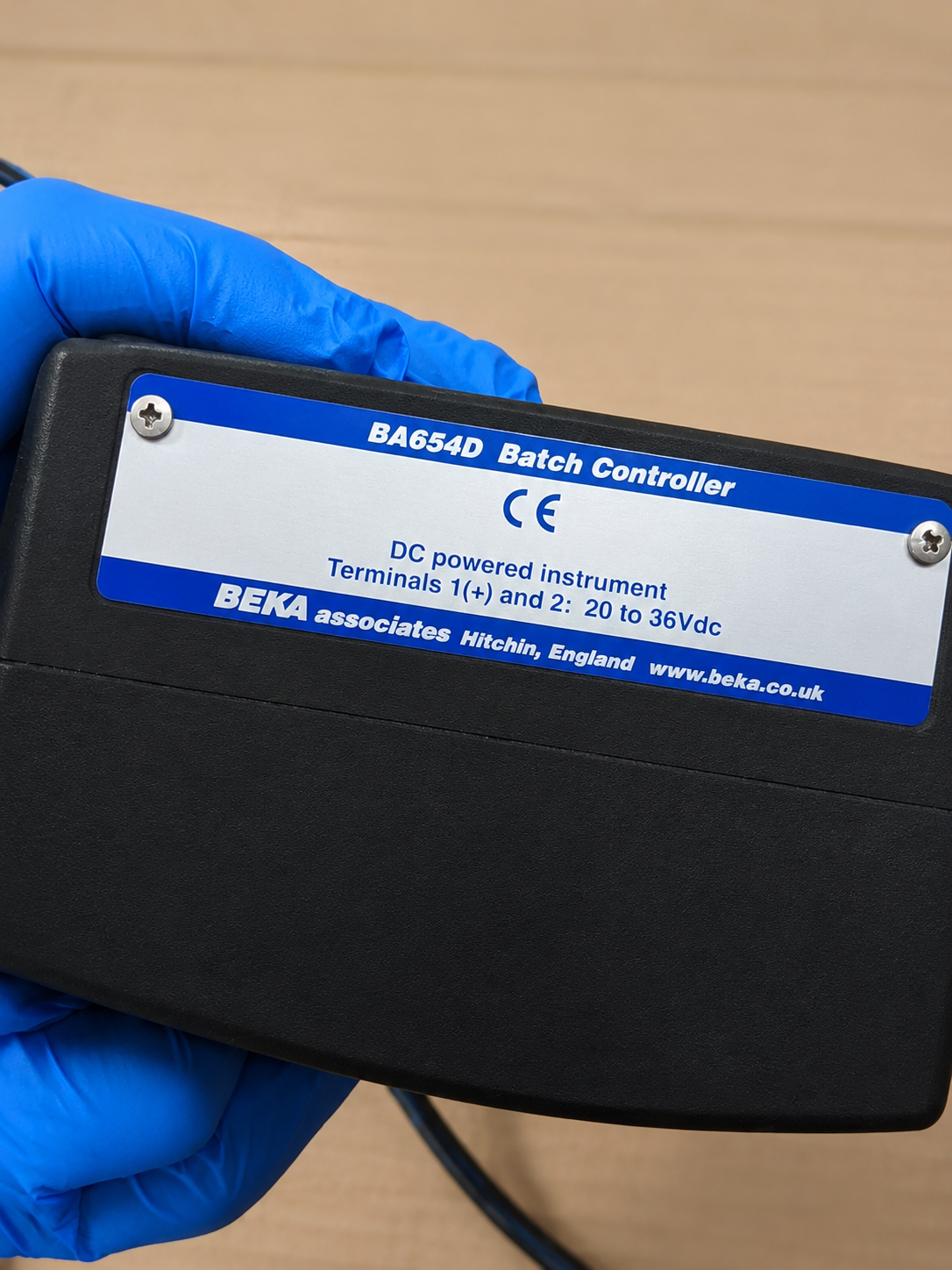

• Manufacturer: BEKA Associates Ltd

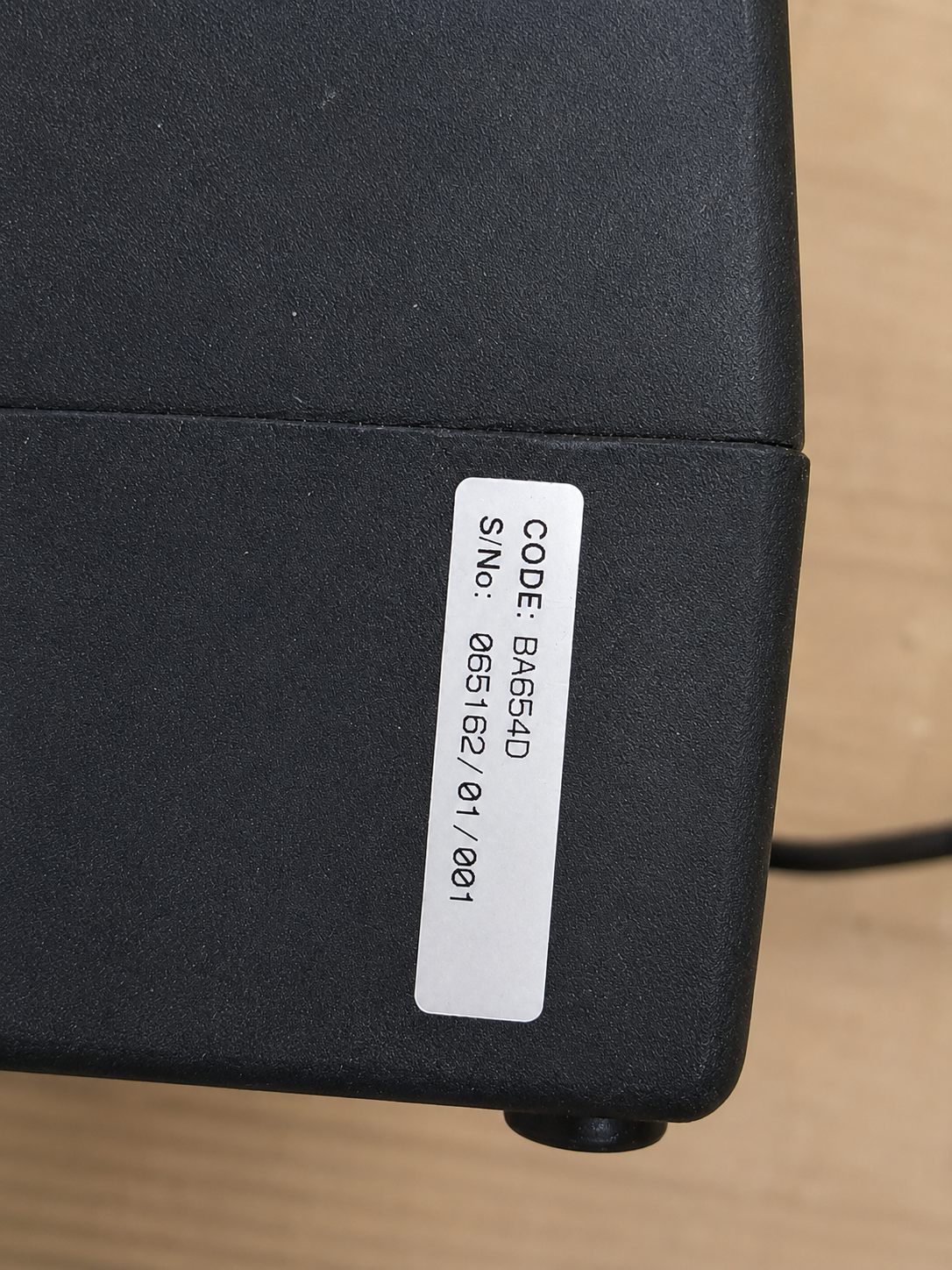

• Model: BA654D

• Display: 86.5mm × 45mm backlit LCD

• Enclosure: Glass Reinforced Polyester (GRP)

• Protection Rating: IP66

• Supply Voltage: 20–36V DC

• Power Consumption: Approx. 95mA

• Inputs:

  • Pulse input

  • Open collector input

  • Magnetic pickup input

  • Proximity detector input

  • 4–20mA analogue input

• Maximum Pulse Frequency:

  • Up to 5kHz (depending on input type)

• Relay Outputs:

  • 3 x SPDT relay outputs

  • 250V AC, 5A

  • 30V DC, 5A

• Operating Temperature: Industrial duty

• Security:

  • Password protected operator menu

  • Password protected configuration menu

Applications

• Flow batching systems

• Chemical dosing

• Water and wastewater treatment

• Tank filling operations

• Industrial process control

• Food and beverage production

• Bulk liquid transfer systems

The BA654D allows operators to accurately dispense predetermined quantities while monitoring flow rates, batch status, alarms, and control outputs from a single rugged field-mounted controller.

Contact

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

MSTAK Contact Number: 07915071899

MSTAK Email: mdalrymple@stakam.co.uk

Quantity

We have 4 total units available, all in good condition.
