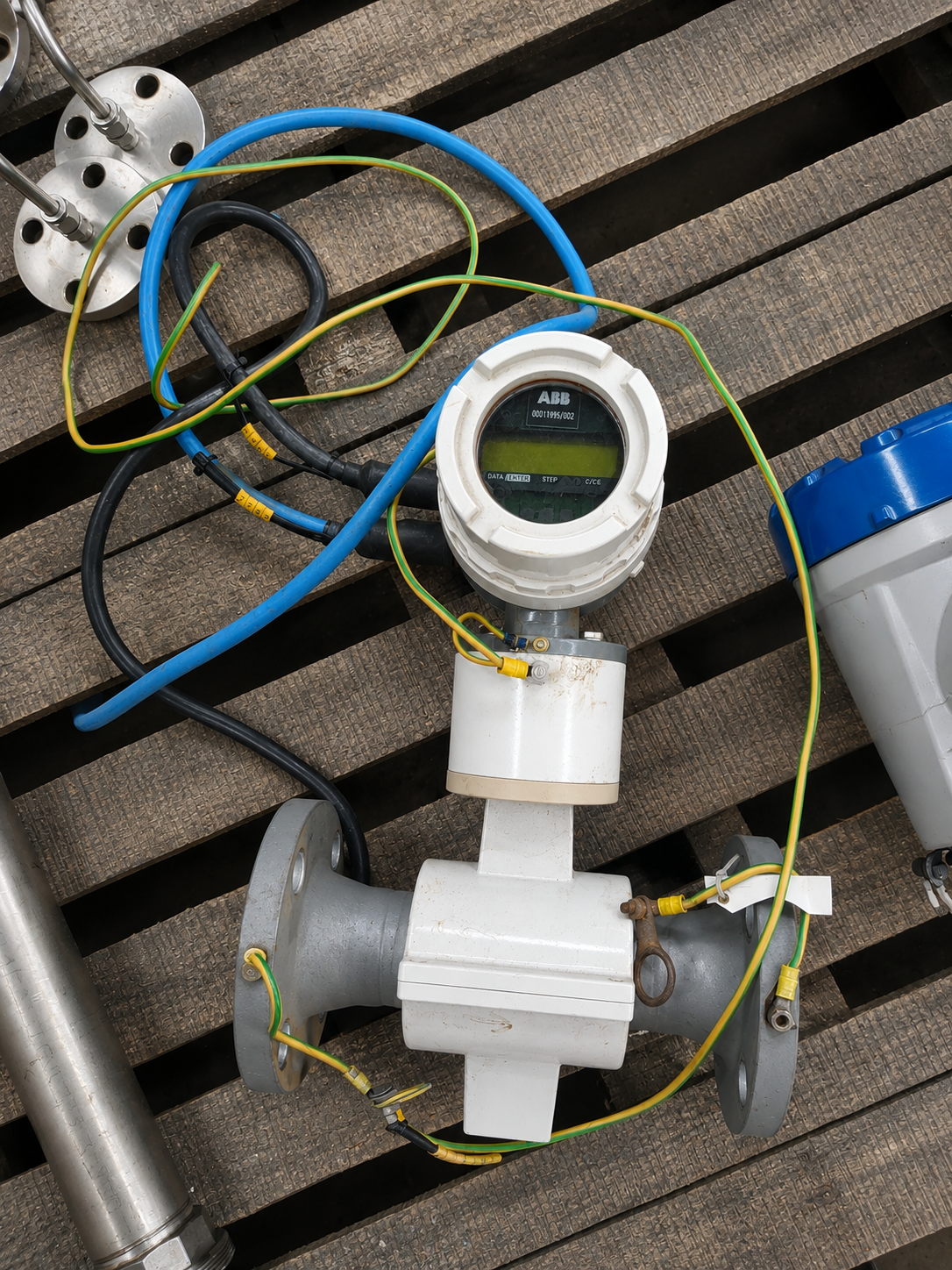

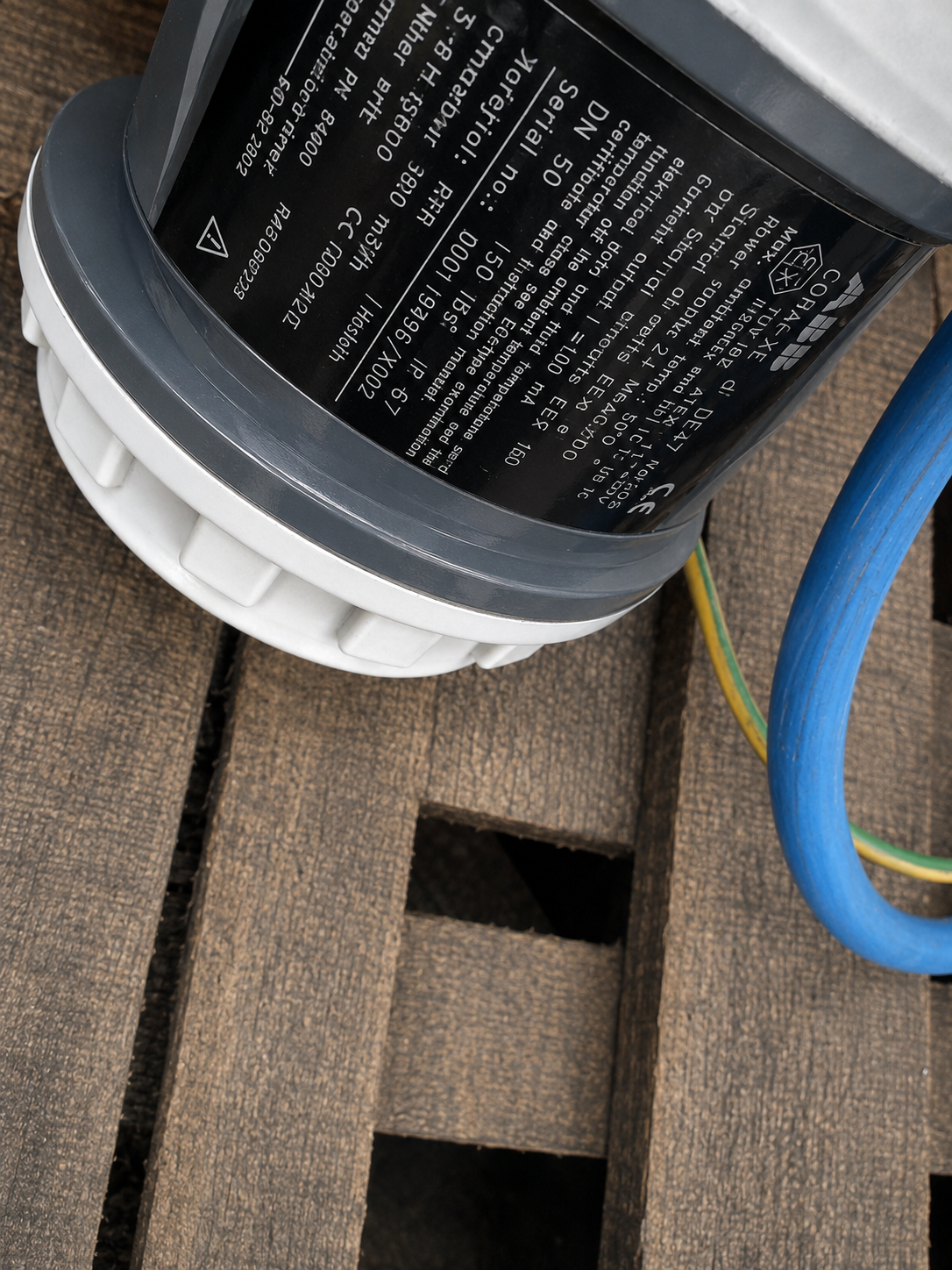

ABB COPA-XE Electromagnetic Flowmeter

The ABB COPA-XE Electromagnetic Flowmeter is a high-performance compact magmeter designed for accurate flow measurement of electrically conductive liquids, slurries, pulps, and wastewater. Combining the flow sensor and converter into a single compact unit, the COPA-XE provides reliable, maintenance-free flow monitoring with no moving parts, minimal pressure loss, and excellent resistance to wear, abrasion, and chemical attack. It is widely used throughout the water treatment, chemical, food & beverage, pharmaceutical, and process industries.

Key Features

• Electromagnetic (magnetic inductive) flow measurement
• Compact sensor and transmitter design
• No moving parts for maintenance-free operation
• Virtually no pressure loss
• Suitable for conductive liquids, slurries, and wastewater
• High measurement accuracy
• Bidirectional flow measurement
• Resistant to abrasion and corrosion
• Multifunction display and diagnostics
• Available with HART, Profibus and other communication options depending on configuration

Specifications

• Manufacturer: ABB
• Series: COPA-XE
• Technology: Electromagnetic Flow Measurement
• Design: Compact Integral Flowmeter
• Conductivity Requirement:

  • 5 µS/cm (20 µS/cm for demineralized water)

• Accuracy:
  • Up to ±0.5% of rate
• Flow Direction:
  • Forward and Reverse Measurement
• Output Signals:
  • 4–20 mA
  • Pulse Output
  • HART / Profibus options (model dependent)
• Protection Rating:
  • IP67
• Process Connections:
  • Flanged
  • Wafer
  • Hygienic process fittings available
• Liner Materials:
  • PTFE
  • PFA
  • Hard or Soft Rubber
• Electrode Materials:
  • 316Ti Stainless Steel
  • Hastelloy
  • Titanium
  • Tantalum
  • Platinum-Iridium (model dependent)
• Ambient Temperature:
  • -20°C to +60°C
• Fluid Temperature:
  • Up to 130°C depending on configuration

Function

The ABB COPA-XE measures liquid flow using Faraday's Law of Electromagnetic Induction. As conductive fluid passes through the magnetic field generated within the flow tube, a voltage proportional to flow velocity is induced and measured by the transmitter. This allows highly accurate flow measurement without mechanical wear or obstruction within the pipe.

Typical Applications

• Water treatment plants
• Wastewater processing
• Chemical manufacturing
• Food & beverage production
• Pharmaceutical processing
• Mining and slurry applications
• Pulp and paper industries
• Utility and process systems
• Industrial liquid transfer monitoring
