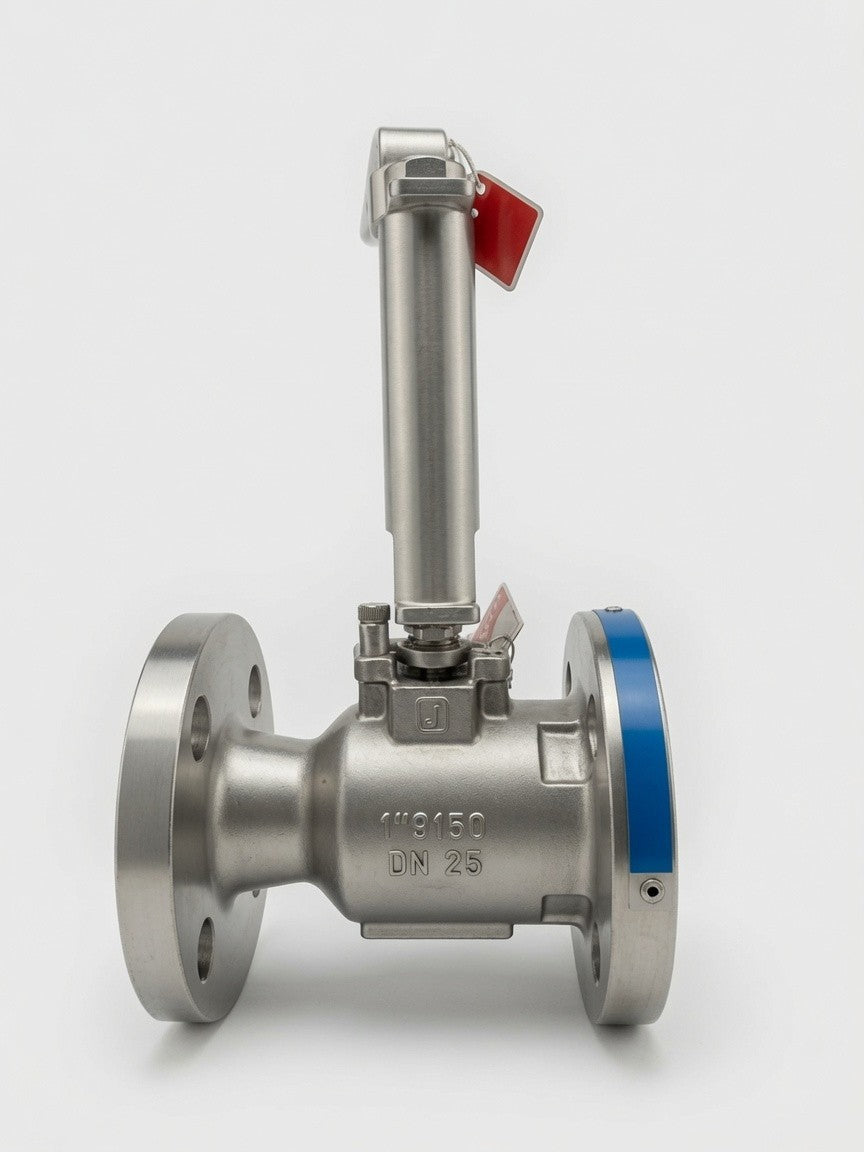

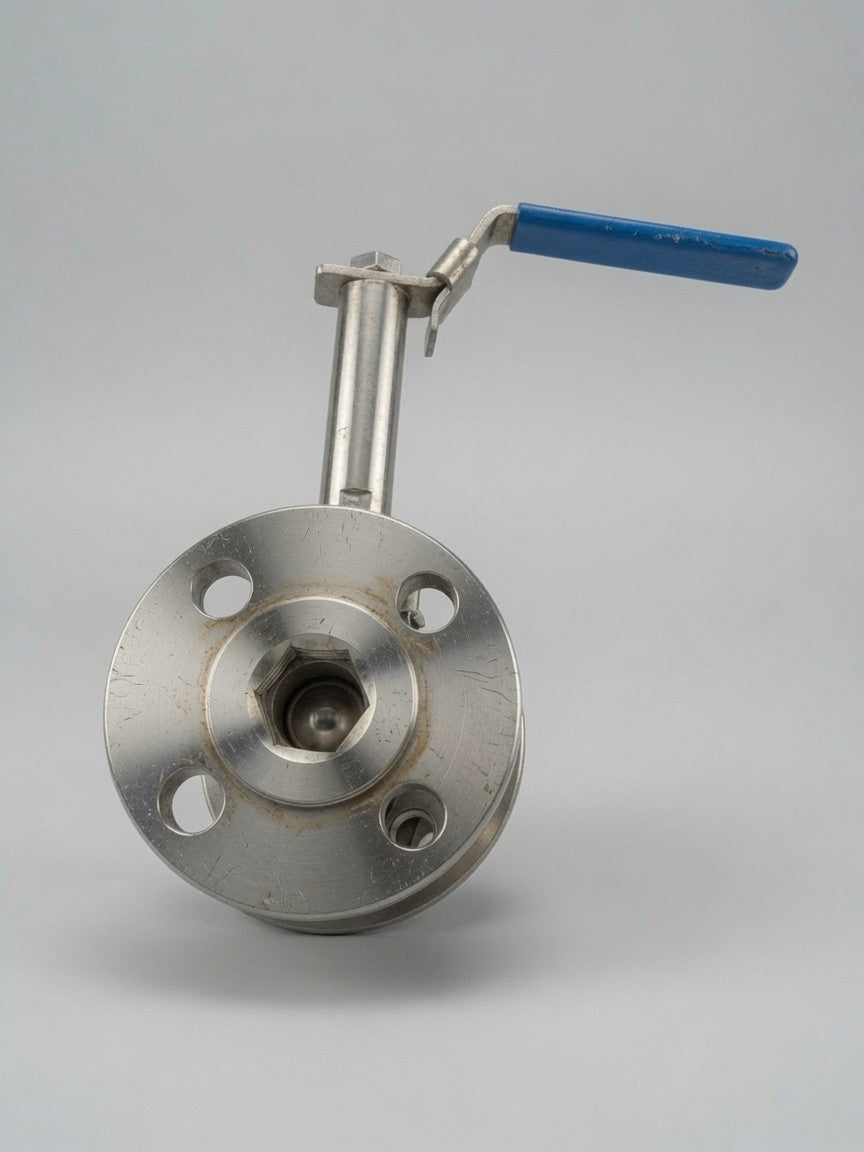

1" CF8M Stainless Steel Ball Valve Class 150

This 1" Stainless Steel Ball Valve is a heavy-duty industrial isolation valve designed for reliable shut-off and flow control in liquid, gas, steam, and process applications. Manufactured from CF8M cast stainless steel (equivalent to 316 stainless steel), the valve offers excellent corrosion resistance and durability in demanding industrial environments. The full-port ball design provides minimal pressure drop and unrestricted flow when fully open.

Key Features

• 1" stainless steel ball valve

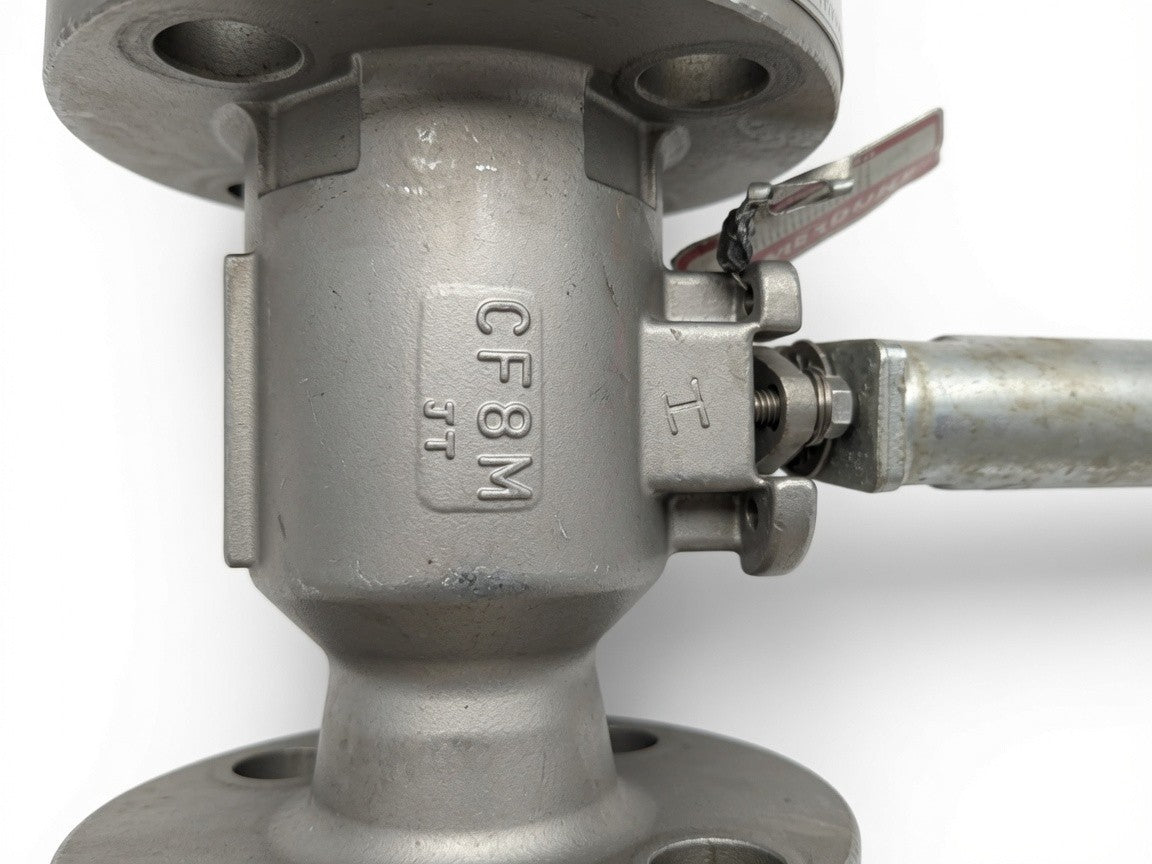

• CF8M (316 stainless steel equivalent) body construction
• Class 150 pressure rating
• Quarter-turn operation
• Full-port flow path
• Blow-out proof stem design
• Corrosion-resistant construction
• PTFE seat seals
• Low operating torque
• Suitable for industrial process applications

Specifications

• Valve Type: Ball Valve
• Nominal Size: 1" (DN25)
• Body Material: CF8M Cast Stainless Steel
• Equivalent Material: ASTM 316 Stainless Steel
• Pressure Class: Class 150
• Operation: Manual Lever Operated
• Flow Type: Full Port
• Seat Material: PTFE (typical)
• Connection Type:
  • Threaded or flanged depending on configuration
• Suitable Media:
  • Water
  • Oil
  • Gas
  • Steam
  • Chemicals
  • Process Fluids
• Temperature Range:
  • Dependent on seat material and application

Function

The valve uses a precision-machined stainless steel ball with a through bore that rotates 90 degrees between fully open and fully closed positions. This simple and robust design provides bubble-tight shut-off, minimal pressure loss, and reliable operation over long service intervals. The CF8M stainless steel construction makes it suitable for corrosive and aggressive process media.

Typical Applications

• Chemical processing
• Water treatment plants
• Food and beverage processing
• Oil and gas facilities
• Pharmaceutical manufacturing
• Marine applications
• Utility systems
• Industrial process piping
• General flow isolation duties

Condition

Used industrial surplus. Removed from a working environment. Please review all photographs carefully for exact connection type, dimensions, pressure markings, and overall condition.

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

MSTAK Contact Number: 07915071899

MSTAK Email: mdalrymple@stakam.co.uk

Quantity

We have 20 total units available.
